Product Description
The Sinus Lifting Kit is a comprehensive implantology surgical instrument system designed for crestal and lateral sinus lifting procedures during dental implant surgery in cases of insufficient alveolar ridge bone height in the posterior maxilla.
The kit includes specialized bone drills, gingival perforators, measuring instruments, bone compaction instruments, and auxiliary surgical components intended for controlled elevation of the Schneiderian membrane and placement of osteoplastic bone grafting materials in the maxillary sinus area.
The system is designed to support precise sinus floor elevation procedures while minimizing the risk of membrane perforation and improving surgical control during sinus augmentation procedures.

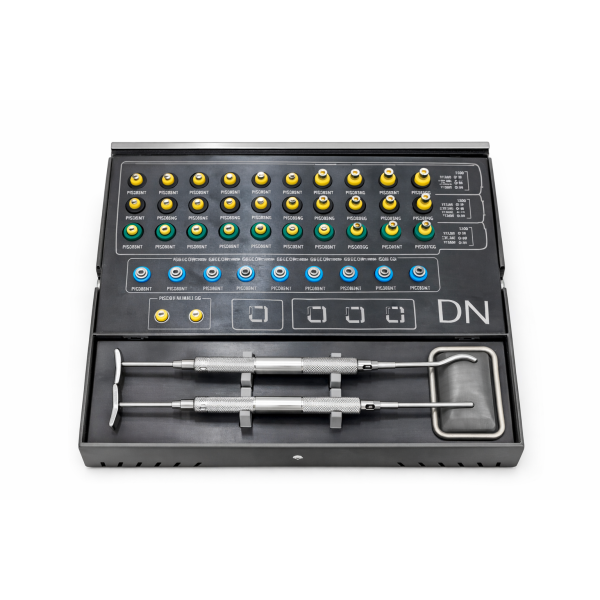

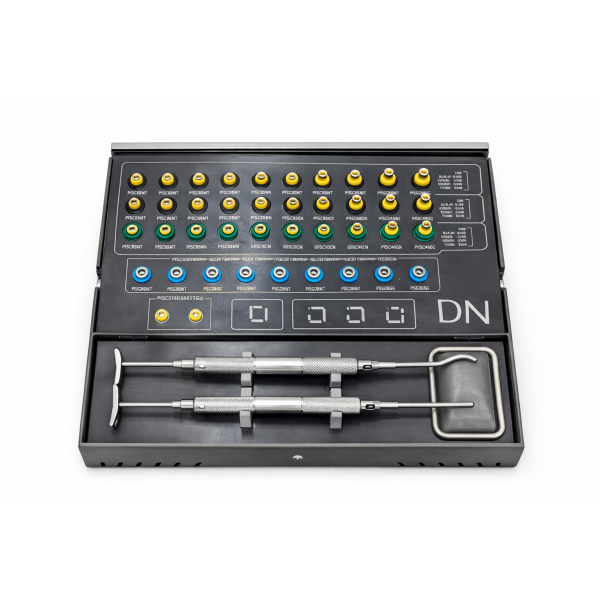

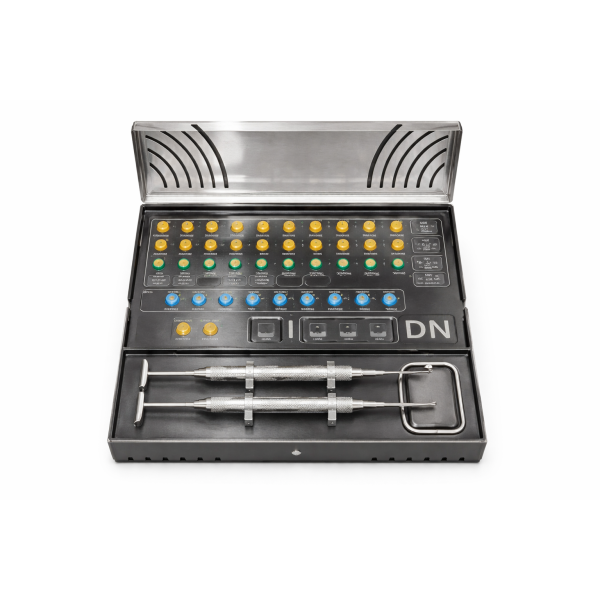

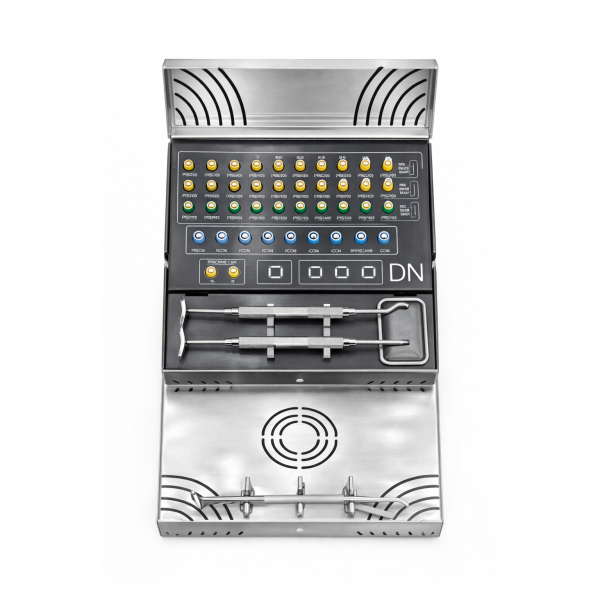

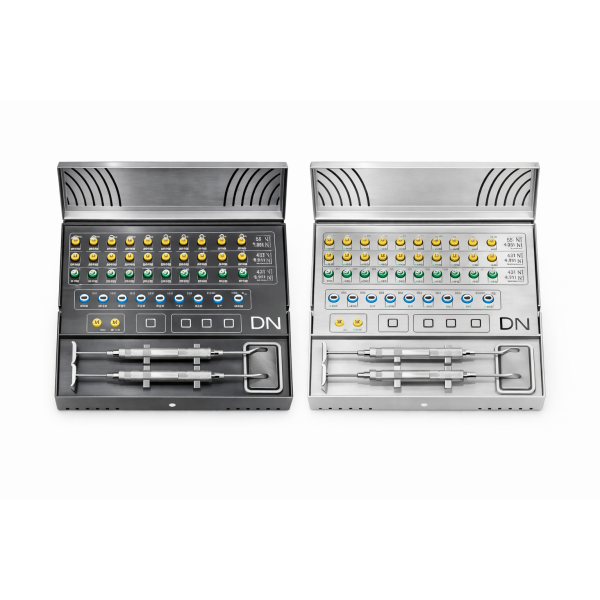

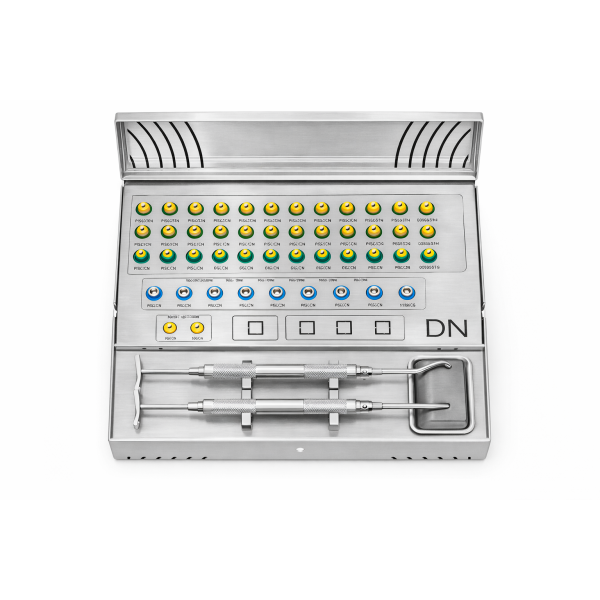

The Sinus Lifting Kit includes:
1. Diamond Drills with Integrated Stoppers for Ridge Access
- 30 diamond drills with integrated depth stoppers:
- 10 diamond drills with diameter 3.65 mm and stopper heights from 1 mm to 10 mm
- 10 diamond drills with diameter 4.2 mm and stopper heights from 1 mm to 10 mm
- 10 diamond drills with diameter 5.3 mm and stopper heights from 1 mm to 10 mm
The integrated stopper system provides precise drilling depth control during crestal sinus lifting procedures and helps protect the integrity of the Schneiderian membrane.
2. Round Spherical Diamond Burs for Lateral Access
- Round spherical diamond bur 4 mm
- Round spherical diamond bur 5 mm
These instruments are intended for lateral window preparation and open sinus lift procedures when lateral access to the maxillary sinus is required.
3. Steel Drills with Integrated Stoppers
- 9 steel drills with integrated stoppers from 2 mm to 10 mm for controlled insertion and compaction of bone grafting material from the ridge side.
The machine-driven bone insertion and compaction system allows smooth and controlled elevation of the sinus membrane with uniform distribution of osteoplastic material.
4. Gingival Perforation Drills
3 drills for perforation of attached gingiva with diameters:
- 3.65 mm
- 4.2 mm
- 5.3 mm
5. Drill Extension
The included drill extension provides additional access in difficult posterior surgical areas and is compatible with all drills included in the kit.
6. Double-Sided Drilling Depth Gauge
- One side diameter: 3.5 mm
- Second side diameter: 5.0 mm
- Used for depth measurement and evaluation of sinus membrane integrity during surgical procedures.
7. Straight and Angled Bone Instruments
Specialized instruments for insertion, manipulation, and compaction of osteoplastic materials during sinus augmentation procedures.
8. Metal Syringe for Bone Insertion
Designed for controlled placement of bone grafting material into the sinus cavity.
9. Metal Tray for Bone Handling
Used for preparation and handling of osteoplastic materials during surgery.
10. Metal Sterilization Box
Metal kit box designed for safe storage and autoclave sterilization of all instruments.
Manufactured from high-quality medical-grade stainless steel and surgical materials, the instruments provide excellent dimensional precision, corrosion resistance, mechanical durability, and long-term clinical reliability.
The shortened drill design improves accessibility and maneuverability in posterior maxillary regions while reducing drill fluctuation and improving osteotomy accuracy.
The Sinus Lifting Kit is intended for use in advanced oral implantology procedures requiring controlled sinus membrane elevation and bone augmentation techniques.
Suitable for:
- Crestal sinus lifting procedures
- Open sinus lift procedures
- Schneiderian membrane elevation
- Bone graft insertion and compaction
- Posterior maxillary implant surgery
- Sinus augmentation procedures
The precision sinus lifting system allows controlled membrane elevation, accurate drilling depth management, and predictable bone graft placement during sinus augmentation procedures.
Specifications
Instrument type: Sinus lifting surgical kit
Application: Crestal and lateral sinus augmentation
Diamond drill diameters:
- 3.65 mm
- 4.2 mm
- 5.3 mm
- Integrated stopper heights: 1 mm to 10 mm
- Steel compaction drills: 2 mm to 10 mm
Gingival perforator diameters:
- 3.65 mm
- 4.2 mm
- 5.3 mm
Depth gauge diameters:
- 3.5 mm
- 5.0 mm
Included accessories:
- Drill extension
- Bone insertion syringe
- Bone handling tray
- Sterilization box
- Material: Medical-grade stainless steel
- Sterilization: Fully autoclavable
Indications for Use
Intended for:
- Crestal sinus lifting procedures
- Open sinus lift procedures
- Schneiderian membrane elevation
- Bone grafting procedures
- Maxillary sinus augmentation
- Posterior maxillary implant surgery
- Oral implantology surgical procedures
Sterilization
The instruments must be sterilized before use in an autoclave at: 135°C (274°F)
Advantages
- Complete sinus lifting surgical system
- Integrated depth stopper control
- Controlled Schneiderian membrane elevation
- Reduced risk of membrane perforation
- Machine-assisted bone compaction system
- Improved graft material distribution
- Shortened drill design for posterior access
- Reduced drill fluctuation during surgery
- Supports both crestal and lateral sinus lift techniques
- Includes instruments for open sinus lift procedures
- High-strength stainless steel construction
- Excellent corrosion resistance
- Fully autoclavable
- Designed for predictable sinus augmentation procedures
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Sinus Lifting Kit
Product Description
The Sinus Lifting Kit is a reusable implantology surgical instrument system intended for crestal and lateral sinus lifting procedures during dental implant surgery in cases of insufficient alveolar ridge bone height in the posterior maxilla.
The system includes specialized bone drills, gingival perforators, measuring instruments, bone compaction instruments, and auxiliary surgical components intended for controlled elevation of the Schneiderian membrane and placement of osteoplastic bone grafting materials in the maxillary sinus area.
The Sinus Lifting Kit includes:
30 diamond drills with integrated stoppers for ridge access:
10 drills Ø 3.65 mm with stopper heights from 1 mm to 10 mm
10 drills Ø 4.2 mm with stopper heights from 1 mm to 10 mm
10 drills Ø 5.3 mm with stopper heights from 1 mm to 10 mm
2 round spherical diamond burs for lateral access:
Ø 4 mm
Ø 5 mm
9 steel drills with integrated stoppers from 2 mm to 10 mm for bone insertion and compaction
3 drills for perforation of attached gingiva:
Ø 3.65 mm
Ø 4.2 mm
Ø 5.3 mm
Drill extension
Double-sided drilling depth gauge:
Ø 3.5 mm
Ø 5.0 mm
Straight and angled instruments for bone insertion and compaction
Metal syringe for bone insertion
Metal tray for bone handling
Metal sterilization box
Manufactured from high-quality medical-grade stainless steel and surgical materials, the instruments provide excellent dimensional precision, corrosion resistance, mechanical durability, and long-term clinical reliability.
Intended Use
The Sinus Lifting Kit is intended for:
- Crestal sinus lifting procedures
- Open sinus lift procedures
- Schneiderian membrane elevation
- Bone graft insertion and compaction
- Maxillary sinus augmentation
- Posterior maxillary implant surgery
- Oral implantology surgical procedures
Indications for Use
The sinus lift set of instruments is intended for use when the alveolar ridge bone height in the lateral areas of the upper jaw is insufficient for dental implantation. The system is designed for:
Bone preparation
- Lifting of the Schneiderian membrane
- Filling the maxillary sinus floor with osteoplastic materials
- Prevention of implant penetration into the maxillary sinus area
Contraindications
- Absolute Contraindications
- Neoplasms of the paranasal sinuses
- Chronic polypous sinusitis
- Mucocele
- Severe allergic rhinitis
- Fungal infection of the paranasal sinuses
- Relative Contraindications
- Chronic sinusitis receiving otolaryngological treatment
- Very small maxillary sinus size
- Mucous retention cyst
- History of maxillary sinus surgery due to increased risk of complications and poor vascularization
Warnings
- The instruments must be used only by qualified dental professionals trained in sinus lifting and implantology procedures.
- Various complications may occur during sinus membrane lifting procedures that may lead to implant rejection.
- The surgeon must have thorough knowledge of sinus anatomy, pathology, grafting materials, sinus lifting techniques, and complication management.
- The packaged medical device is supplied non-sterile and must be sterilized before use.
- Diamond drills lose cutting efficiency with repeated use and should be replaced as necessary depending on clinical performance.
Precautions
- Sterilize all instruments before first use and before each subsequent use.
- Maintain continuous irrigation during drilling procedures.
- Inspect all instruments before each use for wear, deformation, or damage.
- Perform appropriate preoperative patient preparation before surgery.
- Follow standard implantology and sinus augmentation surgical protocols.
- Clean instruments immediately after use to prevent residue accumulation.
Directions for Use
Preoperative Preparation
1. Verify availability of all necessary instruments and equipment.
2. Sterilize all instruments, equipment, and surgical materials.
3. Prepare the patient according to standard implant surgical protocols.
4. Verify availability of bone graft materials and implants.
5. Instruct the patient to rinse with 0.2% chlorhexidine solution for 2 minutes.
6. Administer local anesthesia.
Crestal Sinus Lift Procedure
1. Perform an incision along the alveolar ridge of the posterior maxilla without additional vertical incision.
2. Perform minimal flap elevation.
3. If alveolar ridge height exceeds 5 mm, gingival perforation without incision may be performed.
4. Sequentially prepare bone tissue using diamond drills with integrated stoppers.
5. Operate drills at 1500–2000 rpm with mandatory water cooling.
6. Increase drill stopper height progressively until the sinus floor is reached.
Membrane Integrity Evaluation
1. Measure drilling depth using the included depth gauge.
2. Evaluate Schneiderian membrane integrity.
3. If membrane perforation is detected:
- Perform lateral window access using the spherical diamond burs included in the kit.
- Proceed with open sinus lift technique.
Bone Graft Placement
1. Collect osteoplastic material using the metal syringe.
2. Insert graft material into the prepared osteotomy.
3. Use integrated stopper compaction drills for controlled bone insertion and compaction.
4. Operate compaction drills in reverse rotation (counterclockwise) at 50–70 rpm without irrigation.
5. Introduce approximately 1–3 cc of graft material depending on bone resorption and implant requirements.
Implant Placement
Implant selection depends on alveolar ridge dimensions.
Recommended implant placement sequence:
- After Ø 3.65 mm drill → implant Ø 4.2 mm
- After Ø 4.2 mm drill → implant Ø 5.0 mm
- After Ø 5.3 mm drill → implant Ø 6.0 mm
Prosthetic Closure
Two-stage technique:
Install cover screw
One-stage technique:
Install healing abutment or gingival former
Suture the gingival mucosa and perform postoperative radiographic examination.
Cleaning and Disinfection
Immediately after use:
- Remove visible debris and biological contaminants.
- Rinse thoroughly under running water.
- Clean manually or using an ultrasonic cleaner with approved medical instrument detergent.
- Dry all instruments completely before sterilization.
Sterilization
- The instruments must be sterilized before use in an autoclave at: 135°C (274°F)
- Sterilization must be performed according to standard dental sterilization procedures and local regulations.
Storage
- Store in a clean, dry environment.
- Protect from moisture and contamination.
- Store in sterilization packaging until use.
