Product Description

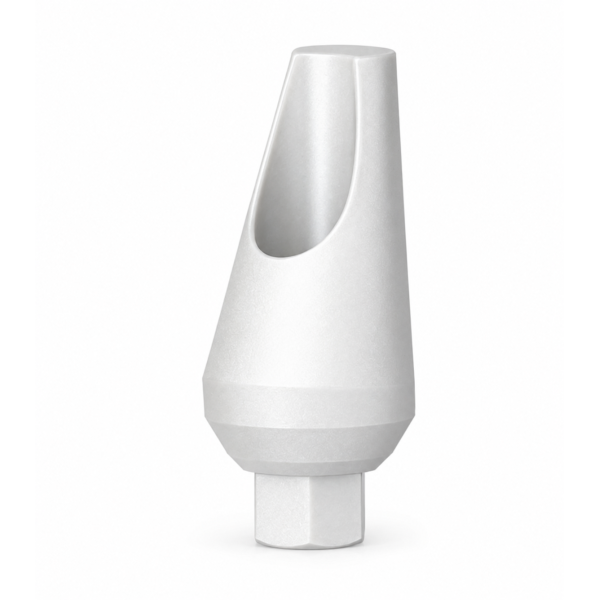

The Plastic Abutment Angular H2.43 – 15° is designed for the fabrication of custom cement-retained and screw-retained implant restorations. Featuring a 15° angulation relative to the implant axis, it allows compensation for implant angulation and supports the creation of patient-specific prosthetic solutions.
Manufactured from high-quality Delrin® (acetal resin), this castable plastic abutment is intended for the production of individual custom abutments in the dental laboratory. The abutment is supplied without a shoulder and features a 2.43 mm hex connection, a diameter of 4.5 mm, and a length of 12 mm.
The component is used in combination with titanium screw 701202 for secure fixation to the implant during the fabrication process.
Compatible Implant Systems
- UNIQUE Implants: Ø3.75 mm, Ø4.2 mm, Ø5.0 mm, Ø6.0 mm
- PERFECT Implants: Ø4.2 mm, Ø5.0 mm, Ø6.0 mm
- PRIMA Implants: Ø3.3 mm, Ø3.75 mm, Ø4.2 mm, Ø5.0 mm, Ø6.0 mm
Key Features
- Designed for cement-retained and screw-retained restorations
- 15° angular configuration
- Castable plastic abutment for custom prosthetic fabrication
- Internal hex connection: H2.43 mm
- Diameter: 4.5 mm
- Length: 12 mm
- Manufactured from high-quality Delrin® (acetal resin)
- Used with titanium screw 701202
- Suitable for custom casting procedures
- Intended for dental laboratory use
Applications
The Plastic Abutment Angular H2.43 – 15° is used for the fabrication of custom cast abutments and implant-supported restorations where correction of implant angulation is required. It provides flexibility for creating individualized prosthetic solutions tailored to specific clinical requirements.
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Plastic Abutment Angular H2.43 – 15°
Product Description
The Plastic Abutment Angular H2.43 – 15° is a prefabricated castable prosthetic component intended for the fabrication of custom cement-retained and screw-retained implant restorations. The abutment features a 15° angulation relative to the implant axis and is designed for implants with an internal hex connection of 2.43 mm.
The abutment is manufactured from Delrin® (acetal resin) and is intended for the fabrication of custom cast abutments in the dental laboratory. The component is supplied without a shoulder and features a diameter of 4.5 mm and a length of 12 mm.
The abutment is used together with titanium screw 701202 for connection to the implant.
Intended Use
The Plastic Abutment Angular H2.43 – 15° is intended for the fabrication of custom implant-supported cement-retained and screw-retained restorations through casting procedures performed in a dental laboratory.
Contraindications
Do not use:
- With implant systems not listed in these instructions.
- If the component is damaged, deformed, or contaminated.
- As a definitive intraoral prosthetic component.
Warnings
- This product is intended for use only by qualified dental professionals and dental laboratories.
- The plastic abutment is intended solely for laboratory fabrication procedures.
- Use only original compatible components and fixation screws.
- Improper fabrication or casting procedures may compromise the fit and function of the final restoration.
Precautions
- Verify compatibility before use.
- Inspect the component prior to use.
- Follow standard laboratory procedures for waxing, investing, and casting.
- Avoid damage to the implant connection geometry during laboratory procedures.
- Maintain traceability of the product lot number in patient records.
Instructions for Use
Laboratory Procedure
- Verify compatibility of the abutment with the selected implant system.
- Attach the plastic abutment to the implant analog or implant using titanium screw 701202.
- Modify the abutment as required to achieve the desired restoration design.
- Complete waxing and casting procedures according to standard laboratory protocols.
- Finish and polish the fabricated custom abutment.
- Inspect the final restoration for fit, accuracy, and integrity before clinical use.
Clinical Procedure
- Verify the fit of the fabricated custom abutment and restoration.
- Connect the final abutment to the implant according to the implant system protocol.
- Seat the restoration and verify occlusion, stability, and soft tissue adaptation.
- For cement-retained restorations, remove all excess cement.
- Perform routine follow-up examinations according to accepted clinical protocols.
Sterilization
The plastic abutment is supplied non-sterile.
The plastic component is intended for laboratory procedures and is not intended for direct long-term intraoral use. The final prosthetic restoration and all definitive components must be cleaned and sterilized according to applicable protocols before clinical placement.
Storage
Store in a clean, dry environment in the original packaging. Protect from contamination, excessive heat, direct sunlight, and mechanical damage.
