Product Description

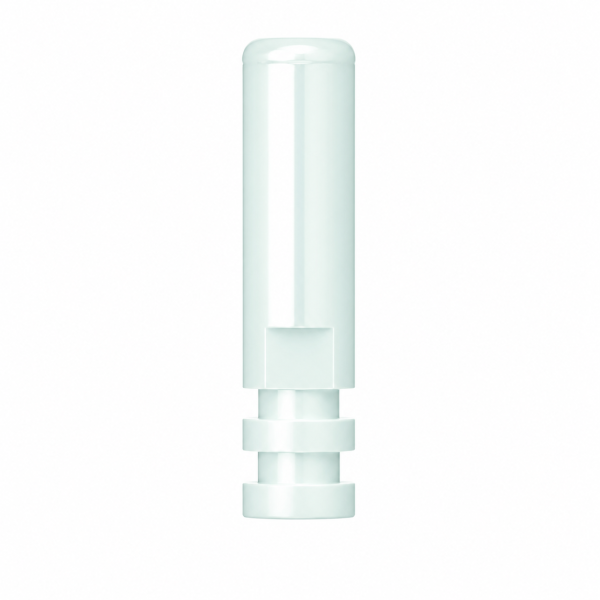

The Laboratory Analogue for Titanium Locator (651038, etc.) is a precision dental component designed to simulate the intraosseous portion of a dental implant in combination with a titanium locator. It enables accurate reproduction of implant positioning in laboratory models, supporting reliable prosthetic planning and fabrication.
The analogue features a retention-grooved body that ensures secure fixation within gypsum (plaster) models. The upper portion includes a precisely machined protrusion corresponding to a titanium locator (651038, etc.), allowing for realistic simulation of implant-supported restorations.
Manufactured from high-quality stainless steel, the component offers excellent durability, corrosion resistance, and stability throughout repeated laboratory use.
Key Features
- Accurate simulation of implant with titanium locator (651038, etc.)
- Retention grooves for secure fixation in gypsum models
- Precision-machined geometry for reliable model reproduction
- High-strength stainless steel construction
- Corrosion-resistant and durable material
- Designed for consistent laboratory performance
Indications & Applications
The Laboratory Analogue is intended for:
- Fabrication of dental laboratory models
- Simulation of implant positioning in prosthetic workflows
- Implant-supported restoration planning
- Dental laboratory and prosthetic applications
Clinical Benefits
- Ensures accurate transfer of implant position to models
- Improves precision in prosthetic fabrication
- Provides stable fixation within plaster models
- Supports reliable and repeatable laboratory results
Specifications
- Inner diameter: 3.8 mm
- Height: 9.5 mm
- Material: Stainless steel
Handling & Usage
- Intended for laboratory use only
- Compatible with standard gypsum (plaster) materials
- Clean and maintain according to standard laboratory protocols
Advantages
- High precision and dimensional accuracy
- Durable and long-lasting construction
- Easy integration into laboratory workflows
- Supports consistent, high-quality prosthetic outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Analogue with Titanium Locator
Intended Use
The Laboratory Analogue with Titanium Locator (651038, etc.) is intended for use in dental laboratories to:
- Simulate the intraosseous portion of a dental implant
- Replicate the position of a titanium locator (651038, etc.)
- Enable accurate fabrication of gypsum models for prosthetic planning
Indications
- Use in dental laboratories for model fabrication
- Simulation of implant-supported restorations with locator attachments
- Suitable for prosthetic planning and workflow procedures
Contraindications
- Not intended for intraoral or clinical use
- Do not use if the component is damaged or deformed
Preparation Before Use
- Supplied non-sterile
- Clean before use
- Inspect the analogue for damage or contamination prior to use
Clinical Procedure
- Select the appropriate compatible titanium locator (651038, etc.)
- Position the analogue in the impression according to implant location
- Ensure correct orientation of the locator portion
- Pour gypsum or dental stone into the impression
- Allow the material to fully set
- Remove the model and verify correct positioning and stability of the analogue
Post-Use Care
- Remove gypsum and debris after use
- Clean thoroughly using appropriate laboratory cleaning solutions
- Dry completely before storage
Warnings & Precautions
- For laboratory use only
- Use only with compatible locator components (651038, etc.)
- Do not apply excessive force
- Ensure correct positioning to maintain accuracy
- Follow standard dental laboratory procedures
Storage
- Store in a clean, dry environment
- Avoid contamination and mechanical damage
