Product Description

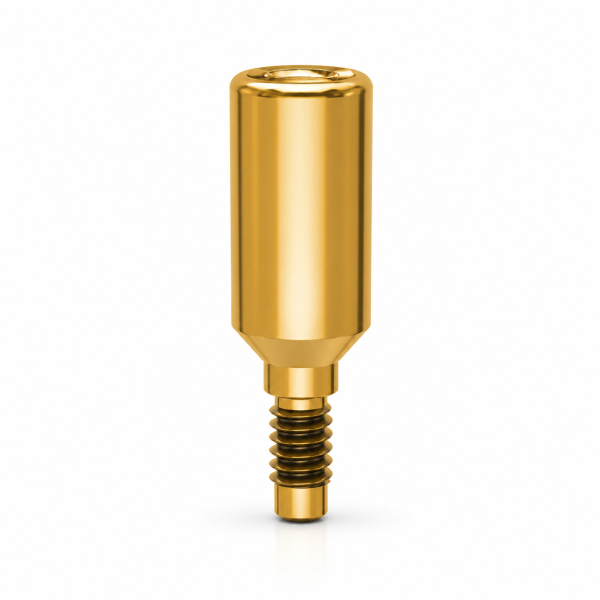

The Locator Abutment for Implant H2.1 & H2.43 is a precision-engineered prosthetic component designed for removable restorations on osseointegrated implants. Featuring a straight (0°) configuration without a shoulder and without an anti-rotation element, it provides reliable retention and optimal performance within locator attachment systems.
Manufactured from high-quality medical-grade titanium alloy Ti6Al4V ASTM F136, the abutment ensures excellent strength, corrosion resistance, and long-term durability in clinical applications.
Key Features
- Locator attachment design for secure overdenture retention
- Straight configuration (0° angulation) for standard implant alignment
- Without shoulder and without anti-rotation element
- High-strength titanium alloy Ti6Al4V ASTM F136
- Compatible with internal Hex 2.1 mm & 2.43 mm implant connections
- Precision fit for consistent prosthetic performance
Indications & Applications
The Locator Abutment is intended for:
- Removable implant-supported restorations (overdentures)
- Use with implants featuring internal Hex 2.1 mm & 2.43 mm connections
- Dental prosthetic workflows requiring locator attachment systems
Clinical Benefits
- Secure and stable prosthesis retention
- Low-profile design for improved patient comfort
- Simplified prosthetic procedures
- Reliable long-term performance
Specifications
- Connection: Internal Hex 2.1 mm & 2.43 mm
- Thread: 1-72 UNF
- Diameter: 4.0 mm
- Angulation: 0°
- Material: Titanium alloy Ti6Al4V ASTM F136
Compatibility
- Used with nylon caps (661800, etc.)
- Used with metal caps (661803)
- Compatible with UNIQUE Implants (Ø 3.0 mm, 3.3 mm, 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm)
- Compatible with PRIMA Implants (Ø 3.3 mm, 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm)
- Compatible with PERFECT Implants (Ø 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm)
Handling & Sterilization
- Supplied non-sterile
- Must be sterilized before use
- Autoclave sterilization at 135°C (274°F)
- Tightening with 1.25 mm hex key
Advantages
- High precision and dimensional accuracy
- Durable and corrosion-resistant material
- Easy integration into prosthetic workflows
- Optimized for locator-based overdenture systems
Specifications
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Locator Abutment for Implant H2.1 & H2.43
Intended Use
The Locator Abutment for Implant H2.1 & H2.43 is intended for use in dental prosthetics to:
- Provide retention for removable restorations on osseointegrated implants
- Support overdenture solutions using locator attachment systems
- Ensure stable and reliable fixation of prosthetic structures
Indications
- Use with implants featuring internal Hex 2.1 mm & 2.43 mm connections
- Removable implant-supported restorations (overdentures)
- Standard (0°) implant alignment cases
Contraindications
- Do not use in patients with known hypersensitivity to titanium
- Not intended for fixed prosthetic restorations
- Do not use if the component is damaged or deformed
Preparation Before Use
- Supplied non-sterile
- Must be sterilized before use in an autoclave at: 135°C (274°F)
- Inspect the abutment for damage, deformation, or contamination prior to use
Clinical Procedure
- Ensure the implant is properly placed and osseointegrated
- Clean and dry the internal implant connection
- Insert the locator abutment into the implant
- Tighten using a 1.25 mm hex key
- Verify correct seating and alignment of the abutment
- Place the metal cap (661803) and nylon cap (661800, etc.) into the prosthesis
- Seat the prosthesis and verify retention, stability, and proper fit
Post-Placement Care
- Instruct the patient on proper hygiene and maintenance
- Regularly check retention elements and replace worn nylon caps
- Monitor implant and prosthetic condition during follow-up visits
Warnings & Precautions
- For professional dental use only
- Use only with compatible H2.1 & H2.43 implant systems
- Ensure proper tightening to avoid loosening or damage
- Do not apply excessive force during placement
- Follow standard implantology and prosthetic protocols
Storage
- Store in a clean, dry environment
- Avoid contamination prior to sterilization
