Product Description

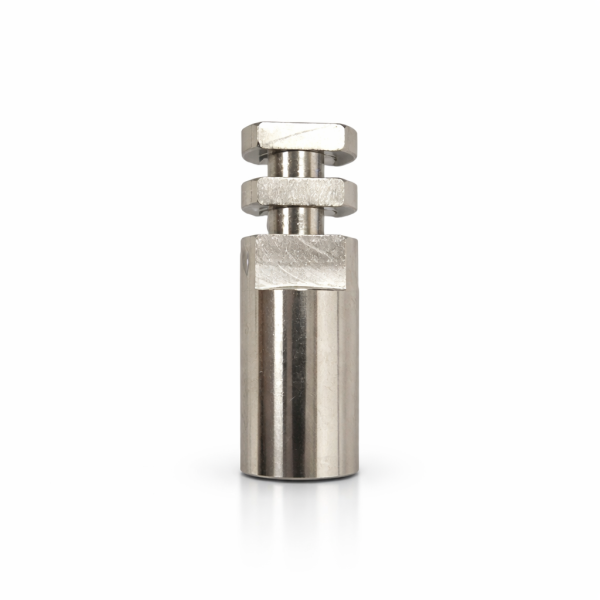

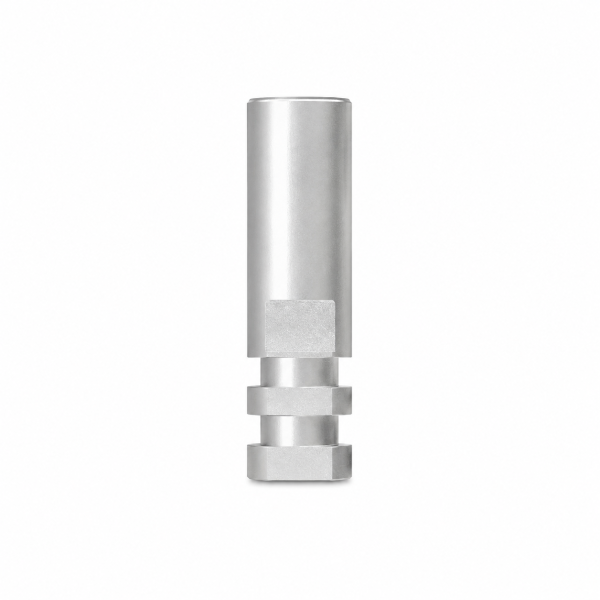

Implant Analog for Conical Implant CH2.1
The Implant Analog for Conical Implant CH2.1 is a precision laboratory component designed to accurately reproduce the intraosseous position and connection geometry of CH2.1 conical dental implants within a dental working model during prosthetic fabrication procedures.
The analogue replicates the implant’s cone + hex 2.1 mm internal connection, allowing precise positioning of prosthetic components and ensuring accurate laboratory simulation of the clinical implant situation.
Manufactured with high dimensional accuracy, the implant analogue is intended for use during the fabrication of implant-supported restorations, including crowns, bridges, bars, and other prosthetic structures.
The component is produced from high-quality stainless steel, providing excellent mechanical strength, corrosion resistance, dimensional stability, and durability throughout laboratory procedures.
The analogue is compatible with DMi conical implant systems featuring CH2.1 internal connection geometry.
Specifications
- Connection: Conical Hex CH2.1
- Material: Stainless steel
- Application: Dental laboratory use
- Compatibility: CH2.1 conical implant systems
Indications for Use
Intended for use in dental laboratories for:
- Fabrication of implant-supported restorations
- Working model fabrication
- Prosthetic simulation of implant position
- Crown and bridge fabrication
- Implant prosthetic workflows
- Laboratory analogue procedures
Compatible with:
- UMI implants: 3.3 mm, 3.75 mm
- PMI implants: 3.3 mm, 3.75 mm, 4.2 mm
Features
- Precision-machined implant connection geometry
- Accurate reproduction of implant position
- Compatible with CH2.1 conical implant connection
- Excellent dimensional stability
- Durable stainless steel construction
- Reliable fit with prosthetic components
- Optimized for laboratory workflows
- High accuracy for restorative procedures
Advantages
- Precise laboratory replication of clinical implant position
- Supports accurate prosthetic fabrication
- Stable connection geometry for reliable component fit
- High mechanical durability
- Corrosion-resistant stainless steel construction
- Compatible with multiple DMi implant systems
- Designed for predictable restorative outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Implant Analog for Conical Implant CH2.1
General Information
Before using DMi products, the dentist, maxillofacial surgeon, or dental technician should carefully read the indications, contraindications, recommendations, warnings, and instructions, as well as all additional product information, including product descriptions, surgical and prosthetic manuals, catalogs, and related documentation.
DMi also recommends participation in relevant continuing education courses conducted on-site or remotely by authorized DMi specialists.
Detailed documentation and training information are available through authorized DMi representatives and on the company website:
www.dmimplant.online
Product Description
The Implant Analog for Conical Implant CH2.1 is a precision laboratory component intended to reproduce the exact position and connection geometry of a conical dental implant with CH2.1 internal connection within a dental working model.
The analogue simulates the intraosseous portion of the implant and is used during prosthetic and laboratory procedures for fabrication of implant-supported restorations.
The component features a precision-machined cone + hexagon CH2.1 connection designed for accurate fit and compatibility with prosthetic components and impression transfers.
Manufactured from high-quality stainless steel, the implant analogue provides:
- Excellent dimensional stability
- High mechanical strength
- Corrosion resistance
- Long-term laboratory durability
Technical Specifications
- Connection: Conical Hex CH2.1
- Material: Stainless steel
- Application: Dental laboratory procedures
- Compatibility: CH2.1 implant systems
Compatible with:
- UMI implants: 3.3 mm, 3.75 mm
- PMI implants: 3.3 mm, 3.75 mm, 4.2 mm
Warnings
- Intended for laboratory use only.
- The product is supplied non-sterile.
- The analogue is not intended for intraoral implantation.
- Improper handling may affect laboratory accuracy and prosthetic fit.
- Only compatible components and instruments should be used.
Indications
The implant analogue is intended for:
- Fabrication of dental working models
- Implant-supported prosthetic restorations
- Crown and bridge laboratory procedures
- Implant prosthetic simulations
- Reproduction of implant position within plaster models
Contraindications
- Use with incompatible implant systems
- Use of damaged or deformed components
- Improper laboratory procedures affecting restoration accuracy
Procedure for Use
Laboratory Procedure
- After obtaining the implant impression, connect the Implant Analog for Conical Implant CH2.1 to the corresponding impression transfer.
- Ensure complete and accurate seating of the analogue within the transfer connection.
- Insert the assembled transfer and analogue into the corresponding position within the impression.
- Verify stable and precise positioning before pouring the model.
- Apply gingival mask material if required for prosthetic procedures.
- Pour the impression using appropriate dental stone or laboratory plaster.
- After complete hardening of the model, separate the impression from the cast.
- The implant analogue remains embedded within the model, accurately reproducing the clinical implant position.
- The resulting working model is used for fabrication of implant-supported restorations.
Sterilization
If sterilization is required, steam sterilization in an autoclave at 135°C (275°F) is recommended before use.
Disclaimer
DMi Technology LLC is not responsible for complications, inaccuracies, or damages resulting from:
- Improper laboratory procedures
- Incorrect component selection
- Use of incompatible systems
- Improper handling or misuse of components
- Failure to follow the instructions for use
The dental technician and clinician are responsible for correct application of the product during prosthetic procedures.
DMi recommends appropriate professional training and familiarity with implant prosthetic workflows prior to use.
