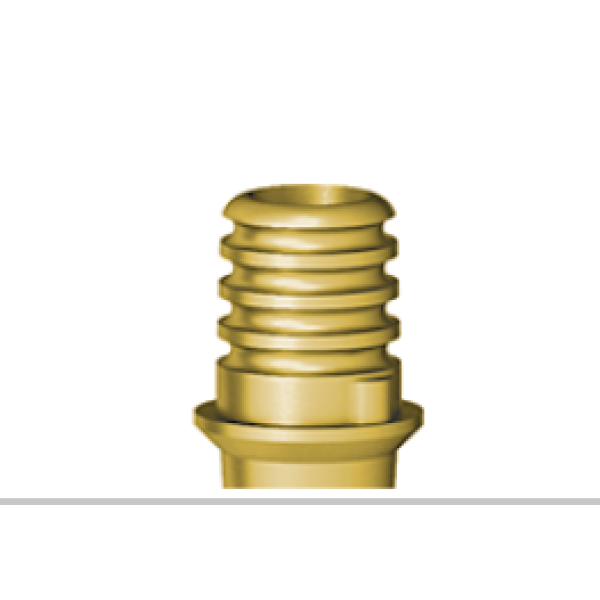

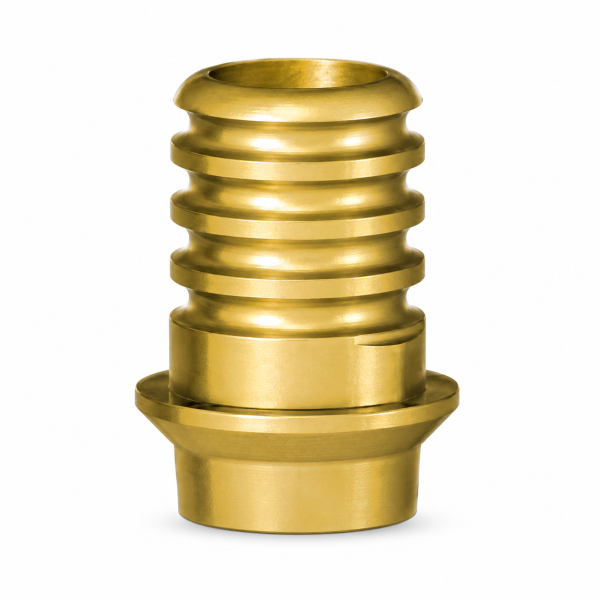

Titanium Base Round for Conical Implant CH2.43

Titanium Base Round for Conical Implant CH2.43

Intended Use

The Titanium Base Round for Conical Implant CH2.43 is intended for the fabrication and fixation of custom screw-retained zirconia bridge restorations on compatible Conical Connection CH2.43 implants. The component serves as a prosthetic interface between the implant and the definitive restoration, providing stable support for long-term implant-supported prosthetic rehabilitation.

The titanium base is designed for permanent restorations supported by two or more osseointegrated implants and is suitable for bridge restorations, multi-unit restorations, and full-arch prosthetic applications.

Indications

The Titanium Base Round for Conical Implant CH2.43 is indicated for:

- Screw-retained bridge restorations
- Custom zirconia bridge restorations
- Multi-unit restorations
- Implant-supported bridges
- Full-arch restorations
- Conical implant restorations
- Permanent prosthetic restorations
- CAD/CAM restorations
- Implant rehabilitation procedures

Laboratory Procedure

Restoration Fabrication

1. Verify compatibility of the Titanium Base with the CH2.43 implant platform.
2. Inspect the component for cleanliness and integrity.
3. Design the custom zirconia bridge according to the treatment plan.
4. Fabricate the restoration using conventional laboratory techniques or CAD/CAM technology.
5. Bond or secure the zirconia restoration to the titanium base according to the selected restorative protocol.
6. Verify passive fit and proper prosthetic alignment before delivery.

Clinical Procedure

Titanium Base Installation

1. Confirm successful osseointegration of all supporting implants.
2. Clean and inspect the implant connection.
3. Position the Titanium Base Round onto the CH2.43 implant platform.
4. Verify complete seating of the titanium base.

Restoration Fixation

1. Seat the completed zirconia bridge restoration.
2. Insert the Titanium Screw 1-72 UNF (701203).
3. Tighten the screw according to the implant system manufacturer's recommended torque values.
4. Verify complete seating and stability of the restoration.
5. Check occlusion and adjust if required.
6. Seal the screw access channel according to the restorative protocol.

Final Restoration Verification

Before completion of treatment:

1. Verify passive fit of the bridge restoration.
2. Confirm complete seating of all titanium bases.
3. Check restoration stability.
4. Verify proper occlusal contacts.
5. Confirm esthetics and soft tissue adaptation.

Removal Procedure

1. Remove restorative material from the screw access channel.
2. Loosen the Titanium Screw 1-72 UNF (701203) using the appropriate driver.
3. Remove the restoration carefully.
4. Inspect the titanium base and associated components before reuse or replacement.

Cleaning and Sterilization

- Remove all contaminants and manufacturing residues.
- Clean using approved medical device cleaning procedures.
- Rinse thoroughly with distilled or deionized water.
- Dry completely before sterilization.
- Sterilize before use in a steam autoclave at: 135°C (274°F)
- Follow validated sterilization procedures and local regulatory requirements.

Warnings and Precautions

- For professional dental use only.
- Use only with compatible Conical Connection CH2.43 implant systems.
- Use only with Titanium Screw 1-72 UNF (701203).
- Verify complete seating before final tightening.
- Follow recommended torque values.
- Do not use damaged or deformed components.
- Components showing signs of wear, deformation, or damage must be replaced.
- Ensure passive fit of the restoration before final fixation.

Storage

Store in a clean, dry environment protected from contamination, moisture, and mechanical damage.
