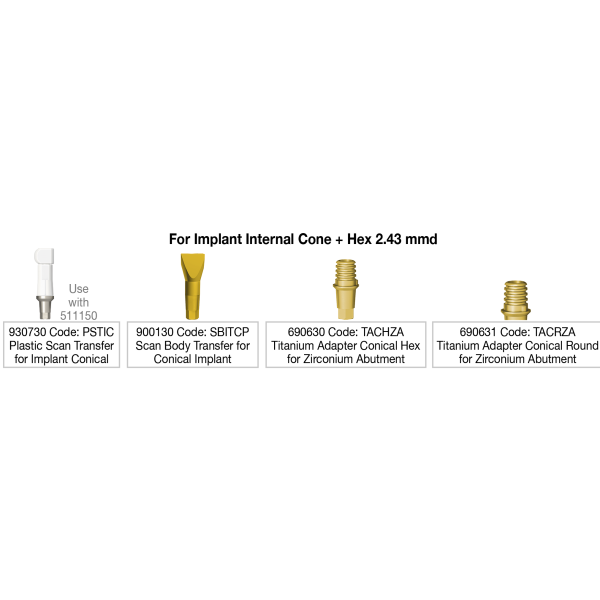

CAD/CAM Libraries
Product Description

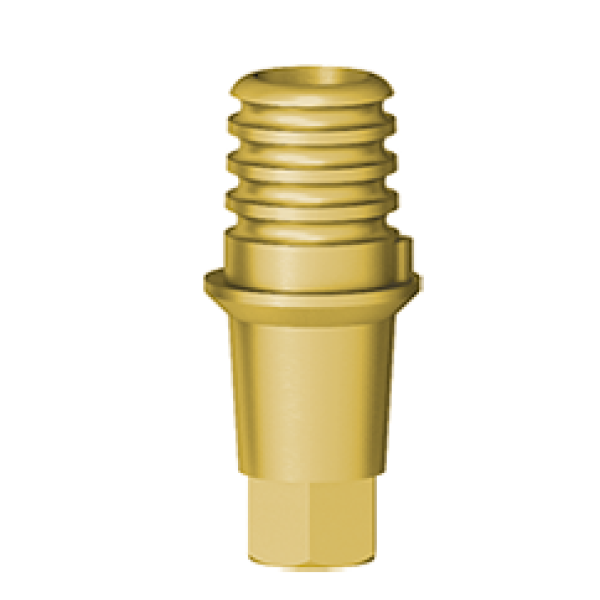

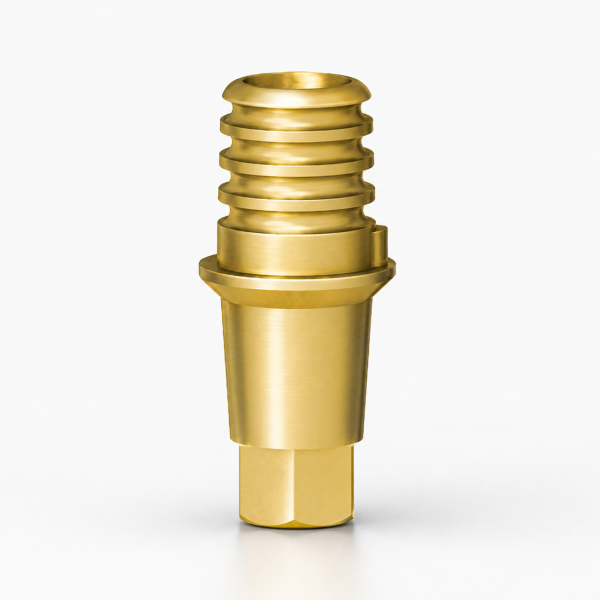

Titanium Base for Conical Implant CH2.43
The Titanium Base for Conical Implant CH2.43 is a precision-engineered prosthetic component designed for screw-retained restorations on osseointegrated implants. It serves as a reliable base for the fabrication of customized zirconia crowns and abutments, ensuring stability, accuracy, and long-term clinical performance.
The titanium base features a straight design with a 0.5 mm shoulder and incorporates an internal hex anti-rotation element (Hex 2.43), preventing rotation between the implant, titanium base, and prosthetic restoration. This ensures precise positioning and enhanced mechanical stability throughout the restoration process.
Manufactured from high-quality medical-grade titanium alloy (Ti6Al4V ASTM F136), the component provides excellent strength, biocompatibility, and resistance to mechanical stress.
Technical Specifications
- Shoulder Diameter: 4.5 mm
- Body Height: 4.0 mm
- Shoulder Height: 0.5 mm
- Connection: Conical CH2.43 with Hex anti-rotation
Key Features
- Designed for screw-retained crown and abutment restorations
- Compatible with conical implant systems CH2.43
- Internal hex (2.43) anti-rotation mechanism
- Direct implant connection using titanium screw (701203, 1-72 UNF)
- High-strength medical-grade titanium alloy
- Ideal for customized zirconia restorations
Indications & Applications
The Titanium Base is intended for:
- Fabrication of customized zirconia crowns and abutments
- Screw-retained implant restorations
- Use on osseointegrated conical implants CH2.43
- Digital and conventional prosthetic workflows
Compatibility
Used together with:
- UMI implants (Ø 4.2 mm, 5.0 mm, 6.0 mm)
- PMI implants (Ø 5.0 mm, 6.0 mm)
Clinical Benefits
- Secure and stable prosthetic connection
- Anti-rotation design ensures precise positioning
- Supports accurate and predictable restorations
- Suitable for long-term clinical use
Sterilization & Handling
- Supplied non-sterile
- Must be sterilized before use
- Sterilize in autoclave at 135°C / 274°F
Advantages
- High precision and durability
- Reliable anti-rotation stability
- Compatible with modern implant systems
- Optimized for esthetic and functional outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Titanium Base for Conical Implant CH2.43
Indications for Use:
- Fabrication of customized zirconia crowns and abutments
- Screw-retained implant restorations
- Use with conical implant systems CH2.43
- Suitable for single-unit restorations
Contraindications:
- Not intended for use in patients with known allergies to titanium
- Do not use with incompatible implant systems
Warnings:
- For use by qualified dental professionals only
- Improper use may result in prosthetic failure or implant complications
- Ensure proper seating and fixation before final restoration
Precautions:
- Ensure the component is clean and sterile before use
- Use the appropriate fixation screw (701203, 1-72 UNF)
- Avoid excessive force during placement
- Follow standard prosthetic and laboratory procedures
Instructions for Use:
- Verify compatibility with the implant system (CH2.43 connection).
- Clean and sterilize the titanium base prior to use.
- Place the titanium base onto the implant.
- Secure using the appropriate titanium screw.
- Tighten according to recommended torque values.
- Fabricate the customized zirconia crown or abutment.
- Cement or finalize the restoration onto the titanium base.
- Verify fit, occlusion, and stability before final placement.
Cleaning and Sterilization:
- Supplied non-sterile
- Clean using manual or ultrasonic cleaning methods
- Sterilize in autoclave at 135°C / 274°F
Storage:
- Store in a clean, dry environment
- Keep in original packaging until use
