Product Description
Closed Lock Transfer for Conical Implant CH2.43

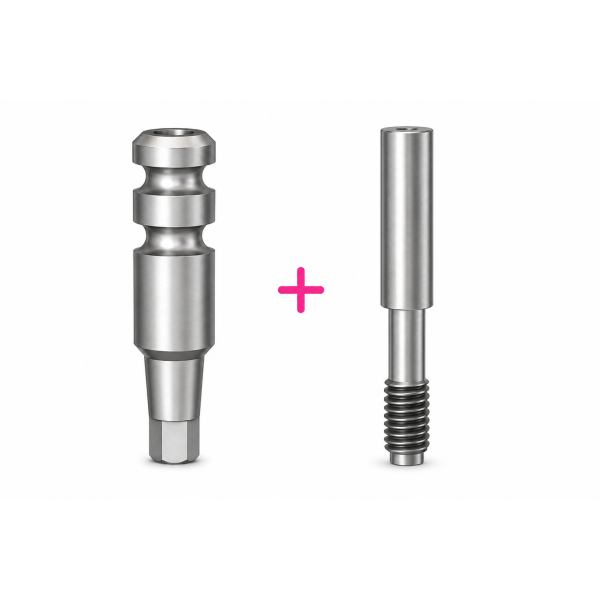

The Closed Lock Transfer for Conical Implant CH2.43 is designed for accurate closed-tray impressions of osseointegrated dental implants with a CH2.43 conical internal connection. The transfer consists of two components: a cylindrical transfer sleeve and a fastening screw, providing stable and precise fixation during impression procedures.
The supragingival transfer sleeve features a precision-machined cone + hex 2.43 mm connection that engages the implant with a secure locking effect. The sleeve is directly connected to the implant using a fastening screw (711112), ensuring reliable positioning and accurate transfer of implant orientation during the impression process.
The transfer is used in conjunction with a 1.27 mm hex driver (431412 or equivalent) for installation and removal.
Manufactured from high-quality stainless steel, the transfer provides excellent dimensional stability, corrosion resistance, mechanical strength, and durability for clinical use.
Specifications
- Connection: Conical Hex CH2.43
- Diameter: 4.5 mm
- Height: 16 mm
- Material: Stainless steel
Indications for Use
Intended for closed-tray impression techniques with osseointegrated implants in all areas of the upper and lower jaw.
Compatible with:
- UMI implants: 4.2 mm, 5.0 mm, 6.0 mm
- PMI implants: 5.0 mm, 6.0 mm
Sterilization
- The transfer is intended for single-patient use only.
- The product is supplied non-sterile and should be sterilized in an autoclave at 135°C (275°F) before use.
Advantages
- Secure screw-retained fixation for precise positioning
- Two-piece transfer design for stable clinical performance
- Accurate transfer of implant position and orientation
- Compatible with CH2.43 conical implant connection
- Precision-machined stainless steel construction
- Reliable seating within the implant connection
- Compatible with multiple implant systems
- Designed for efficient closed-tray impression procedures
- Supports predictable restorative outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
General Information
Before using DMi products, the dentist, maxillofacial surgeon, or dental technician should carefully read the indications, contraindications, recommendations, warnings, and instructions, as well as all additional product information, including product descriptions, surgical and prosthetic manuals, catalogs, and related documentation.
DMi also recommends participation in relevant continuing education courses conducted on-site or remotely by authorized DMi specialists.
Detailed documentation and training information are available through authorized DMi representatives and on the company website:
www.dmimplant.online
Product Description
The Closed Lock Transfer for Conical Implant CH2.43 (901331) is intended for closed tray impression procedures and consists of two components:
- Cylindrical transfer sleeve
- Fastening screw (711112)
Technical Specifications
- Diameter: 4.5 mm
- Height: 16 mm
- Material: Stainless steel
- Implant connection: Cone + Hex CH2.43
The transfer sleeve is a supragingival component featuring a precision-machined cone + hexagon 2.43 mm connection. The sleeve engages the implant connection with a secure locking effect and is fixed directly to the implant using the fastening screw.
The transfer is installed and removed using a 1.27 mm hex driver (431412 or equivalent).
The product is intended for taking impressions of osseointegrated implants with CH2.43 conical internal connection, including:
- UMI implants: 4.2 mm, 5.0 mm, 6.0 mm
- PMI implants: 5.0 mm, 6.0 mm
Warnings
- The product is intended for single-patient use only.
- The product is supplied non-sterile.
- Sterilization in an autoclave at 135°C (275°F) before clinical use is recommended.
- The dentist or maxillofacial surgeon must be familiar with the clinical protocol for using implant impression transfers.
- Improper handling or incorrect clinical use may affect impression accuracy and prosthetic outcomes.
Indications
The impression transfer is intended for use in implant prosthetics to accurately transfer the position of an osseointegrated implant from the oral cavity to a laboratory model using the closed tray impression technique.
Contraindications
- Lack of implant osseointegration
- Allergy or hypersensitivity to metals
- Trismus of masticatory muscles
- Limited mouth opening
- Increased gag reflex
Procedure for Use
The closed tray impression technique allows accurate transfer of the implant position from the oral cavity to the working model.
Clinical Procedure
1. Remove the healing abutment or gingiva former using a 1.27 mm hex driver.
2. Insert the Closed Lock Transfer CH2.43 (901331) into the implant internal cone + hex connection.
3. Insert the fastening screw (711112) through the hollow opening of the transfer and secure the transfer to the implant using a 1.27 mm hex driver.
4. Cover the occlusal opening of the transfer with wax to prevent impression material from entering the screw channel.
5. Take the impression using the closed tray “sandwich” technique:
- Low-viscosity material around the transfer
- High-viscosity material in the tray
- Medium-viscosity material may also be used when clinically appropriate.
6. After complete polymerization of the impression material, remove the impression from the oral cavity.
7. Using a 1.27 mm hex driver, unscrew the fastening screw (711112) and remove the transfer from the implant.
8. Attach the corresponding laboratory analogue for Conical Hex CH2.43 implants to the transfer outside the oral cavity.
9. Insert the assembled “transfer + analogue” into the corresponding position within the impression.
10. Transfer the impression to the dental laboratory.
11. The dental technician fabricates gingival imitation material around the implant area and pours the impression using dental stone.
12. After separation of the impression from the model, the implant analogue remains positioned within the cast, accurately reproducing the intraoral implant position.
13. The resulting master model is used for fabrication of the implant-supported prosthetic restoration.
Sterilization
- The product is supplied non-sterile and must be sterilized before use in an autoclave at: 135°C (275°F)
- Single-patient use only.
Storage
Store in a clean, dry environment at room temperature away from direct sunlight and contamination.
Disclaimer
DMi Technology LLC. is not responsible for complications, injuries, or other negative consequences resulting from:
- Incorrect clinical indications
- Improper prosthetic technique
- Incorrect component selection
- Improper use or handling of instruments and components
- Failure to follow the instructions for use
The treating dentist or maxillofacial surgeon is solely responsible for appropriate clinical application of the product.
DMi recommends appropriate professional training and participation in specialized DMi educational programs prior to clinical use.
