Product Description

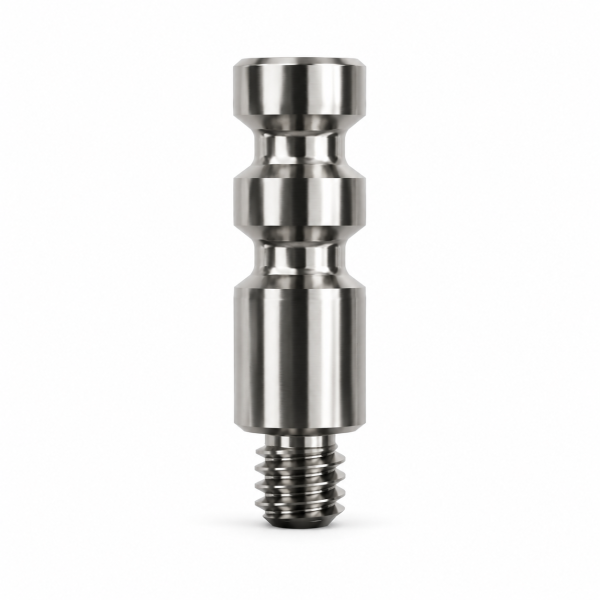

The Screw Transfer for Standard Connector Abutment is a precision impression component designed for accurate transfer of the intraoral position of osseointegrated implants and standard connector abutments to the working model during prosthetic procedures.
The transfer screw is compatible with standard connector abutments with a 4.0 mm diameter (Ref. 604040, etc.) and connects directly to the abutment during impression procedures. The component is intended for use with the closed tray impression technique for accurate reproduction of implant-abutment positioning in laboratory workflows.
Manufactured from high-quality stainless steel, the transfer screw provides excellent dimensional stability, mechanical strength, corrosion resistance, and durability during repeated clinical and laboratory procedures.
The component is used together with a 1.25 mm hex driver for secure handling and fixation.
Key Features
- Designed for closed tray impression technique
- Compatible with standard connector abutments (604040, etc.)
- Direct connection to the abutment
- Precision-machined for accurate impression transfer
- Manufactured from high-quality stainless steel
- Compatible with 1.25 mm hex driver
- Reliable stability during impression procedures
Available Versions / References
- Standard connector abutment: 604040, etc.
- Prosthetic thread: M2.0 UNF
Technical Specifications
- Diameter: 2.9 mm
- Height: 8 mm
- Hex connection: 1.25 mm
- Thread type: M2.0 UNF
Material
Manufactured from high-quality stainless steel, providing:
- High mechanical strength
- Corrosion resistance
- Excellent dimensional stability
- Precision and durability for clinical use
- Clinical / Laboratory Application
- Closed tray implant impression procedures
- Transfer of implant-abutment position to laboratory model
- Prosthetic workflows for osseointegrated implants
- Accurate reproduction of implant positioning
Sterilization
Before clinical use, the product must be sterilized in an autoclave at 135°C / 274°F.
Advantages
- Accurate transfer of implant position
- Stable connection to standard connector abutment
- Easy handling with 1.25 mm hex driver
- Durable stainless steel construction
- Supports accurate and predictable prosthetic outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Screw Transfer for Standard Connector Abutment
Intended Use
The Screw Transfer is intended for:
- Closed tray implant impression procedures
- Transfer of implant-abutment position to the dental laboratory model
- Prosthetic restoration workflows for osseointegrated implants
Indications
The product is indicated for use with:
- Standard connector abutments (Ref. 604040, etc.)
- Osseointegrated dental implant systems
- Closed tray implant impression procedures
Contraindications
Do not use the product in:
- Patients with known hypersensitivity to stainless steel materials
- Clinical situations incompatible with closed tray impression procedures
- Cases where the component is damaged, deformed, or worn
Warnings
- Product is supplied non-sterile.
- Sterilization before clinical use is mandatory.
- Use only compatible prosthetic components and instruments.
- Improper seating of the transfer may lead to inaccurate impressions and prosthetic misfit.
- Do not use excessive tightening force.
- Intended for professional dental use only.
Precautions
- Verify compatibility with the implant system before use.
- Inspect the component before clinical application.
- Ensure complete seating of the transfer onto the abutment.
- Use only a 1.25 mm hex driver for tightening procedures.
- Follow standard implant prosthetic protocols and infection control procedures.
Instructions for Clinical Use
1. Preparation
- Remove the healing component or temporary restoration from the implant abutment.
- Clean and dry the prosthetic connection area.
2. Placement of the Screw Transfer
- Position the Screw Transfer onto the standard connector abutment (Ref. 604040, etc.).
- Secure the transfer by tightening into the abutment connection.
- Tighten using a 1.25 mm hex driver until stable seating is achieved.
3. Impression Procedure
- Verify correct positioning and stability of the transfer.
- Prepare the impression tray for the closed tray technique.
- Inject impression material around the transfer and seat the tray.
- Allow the impression material to fully polymerize according to the manufacturer’s instructions.
4. Removal
- Remove the impression tray from the patient’s mouth.
- Unscrew and remove the transfer from the mouth.
- Attach the laboratory analogue to the transfer.
- Reposition the transfer assembly into the impression for model fabrication.
Cleaning and Sterilization
- The product must be cleaned and sterilized before use.
- Sterilization Parameters
- Autoclave sterilization
- Temperature: 135°C / 274°F
Storage
- Store in a clean, dry environment.
- Protect from contamination, moisture, and mechanical damage.
- Avoid exposure to corrosive substances.
