Product Description

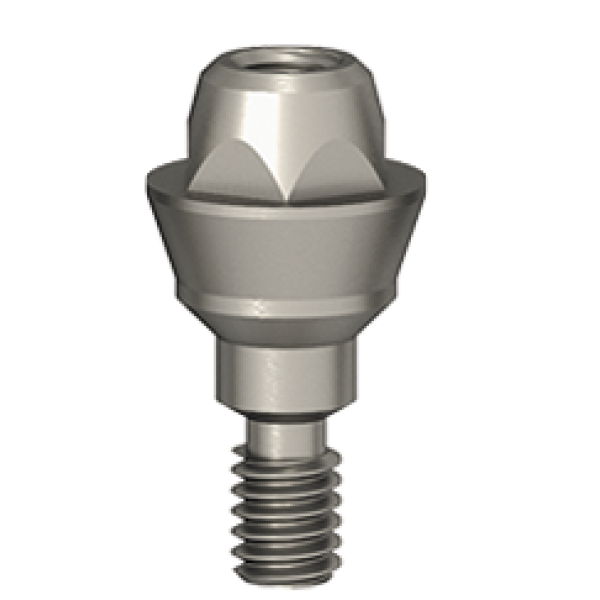

Titanium Esthetic Screw Multi-Unit M2-1.5mm for Implant H2.1–H2.43
The Titanium Esthetic Screw Multi-Unit M2-1.5 for Implant H2.1–H2.43 is a precision prosthetic component designed for screw-retained implant restorations on implants with H2.1–H2.43 internal connection.
The component features a straight 0° angulation relative to the implant axis and includes a shoulder design 1.5mm, without an anti-rotation element. The multi-unit abutment is equipped with a 1/72 UNF external prosthetic thread for fixation of permanent prosthetic restorations.
The abutment connects directly to the implant by screwing into the internal implant thread, providing stable prosthetic support and accurate restorative positioning for implant-supported rehabilitation.
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, the multi-unit abutment provides excellent mechanical strength, bio-compatibility, corrosion resistance, and long-term dimensional stability for implant prosthetic applications.
The component is intended for use with titanium prosthetic screw M2 (Ref. 700229) for fixation of permanent screw-retained restorations.
Key Features
- Straight multi-unit abutment with 0° angulation
- Designed for screw-retained restorations
- Shoulder design without anti-rotation feature
- 1/72 UNF external prosthetic thread
- Direct connection to implant H2.1–H2.43 interface
- Precision-machined titanium construction
- Compatible with titanium prosthetic screw M2 (700229)
- Compatible with 1.77 mm or 1.27 mm hex drivers
- Designed for implant-supported restorative workflows
Available Versions / References
- Titanium prosthetic screw M2: 700229
- Implant connection: H2.1–H2.43 internal connection
Compatible Implant Systems
- UNIQUE Implant: 3.0 mm, 3.3 mm, 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm
- PERFECT Implant: 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm
- PRIMA Implant: 3.3 mm, 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm
Technical Specifications
- Shoulder length: 1.5 mm
- Shoulder diameter: 4.7 mm
- Angulation: 0°
- Prosthetic thread: 1/72 UNF
- Hex connection: 1.77 mm / 1.27 mm
Material
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, providing:
- High mechanical strength
- Excellent bio-compatibility
- Corrosion resistance
- Precision and long-term durability
- Reliability for implant prosthetic restorations
Clinical / Laboratory Application
- Screw-retained implant restorations
- Multi-unit prosthetic rehabilitation
- Implant-supported permanent restorations
- Prosthetic fixation on osseointegrated implants
- Implant restorative workflows
Sterilization
Before clinical use, the product must be sterilized in an autoclave at 135°C / 274°F.
Advantages
- Stable connection to implant systems H2.1–H2.43
- Reliable support for screw-retained restorations
- Straight prosthetic alignment
- Durable and bio compatible titanium construction
- Compatible with multiple implant platforms
- Supports accurate and predictable prosthetic outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Titanium Esthetic Screw Multi-Unit M2 for Implant H2.1–H2.43
Intended Use
The Titanium Esthetic Screw Multi-Unit is intended for:
- Screw-retained implant-supported restorations
- Multi-unit prosthetic rehabilitation
- Implant-supported permanent restorations
- Prosthetic fixation on osseointegrated implants
Indications
The product is indicated for use with:
- Implants with H2.1–H2.43 internal connection
- UNIQUE Implant systems
- PERFECT Implant systems
- PRIMA Implant systems
- Screw-retained prosthetic restorations
- Titanium prosthetic screw M2 (700229)
Contraindications
Do not use the product in:
- Patients with known hypersensitivity to titanium alloys
- Clinical situations incompatible with implant-supported restorations
- Cases where the component is damaged, deformed, or worn
Warnings
- Product is supplied non-sterile.
- Sterilization before clinical use is mandatory.
- Use only compatible implant systems, prosthetic components, and fixation screws.
- Improper seating may result in prosthetic misfit or mechanical complications.
- Do not use excessive tightening force.
- Intended for professional dental use only.
Precautions
- Verify compatibility with the implant system before use.
- Inspect the component before clinical application.
- Ensure complete seating of the abutment into the implant connection.
- Use only compatible titanium prosthetic screw M2 (700229).
- Use only compatible 1.77 mm or 1.25 mm hex drivers.
- Follow standard implant prosthetic and infection control procedures.
Instructions for Clinical Use
1. Preparation
- Verify implant compatibility and prosthetic treatment plan.
- Clean and dry the implant connection area before placement.
2. Placement of the Multi-Unit Abutment
- Position the Titanium Esthetic Screw Multi-Unit M2 into the implant internal connection.
- Secure the abutment by screwing into the internal thread of the implant.
- Tighten using a 1.77 mm or 1.25 mm hex driver according to standard prosthetic protocols.
3. Prosthetic Procedure
- Attach the permanent prosthetic restoration.
- Secure the restoration using titanium prosthetic screw M2 (700229).
- Verify passive fit and prosthetic alignment before final fixation.
4. Final Restoration
- Complete the screw-retained restorative procedure according to standard clinical protocols.
- Verify occlusion, prosthetic stability, and final seating.
Cleaning and Sterilization
- Sterilization Parameters
- Autoclave sterilization
- Temperature: 135°C / 274°F
Storage
- Store in a clean, dry environment.
- Protect from contamination, moisture, and mechanical damage.
- Avoid exposure to corrosive substances.
