Product Description
Surgical Set for Gum / Bone Manipulation
The Surgical Set for Gum / Bone Manipulation is a specialized implantology surgical kit designed for soft tissue and bone management during advanced dental implant procedures. The set contains precision instruments intended for bone expansion, tissue manipulation, cortical preparation, implant site modification, and prosthetic screw handling during oral surgical procedures.
The kit is designed to support minimally invasive implant surgery techniques, ridge manipulation procedures, soft tissue management, and controlled preparation of implant osteotomies in anatomically challenging clinical situations.
The surgical set includes trephines, bone punches, tissue punches, stopper systems, extension adapters, and universal implant driver connections for controlled and predictable surgical manipulation.
The instruments are manufactured from high-quality medical-grade materials providing excellent mechanical strength, corrosion resistance, dimensional precision, and long-term clinical durability.

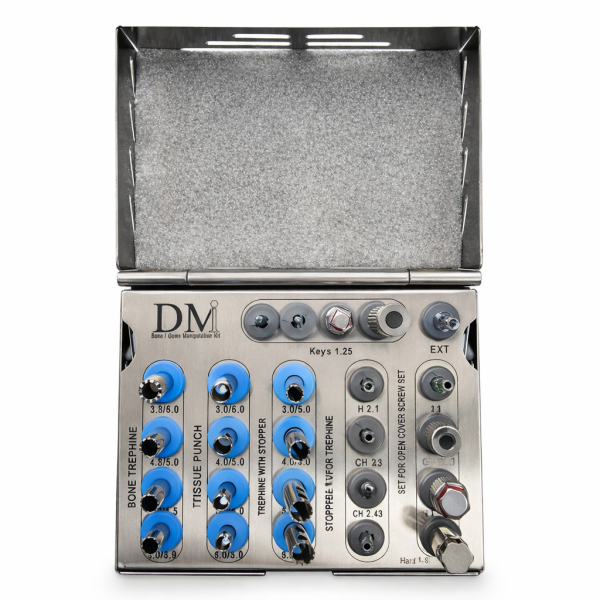

The compact surgical cassette design provides organized instrument storage, simplified surgical workflow, and efficient sterilization management.
Set Components
1. Bone Trephines
Precision trephine instruments designed for bone harvesting, cortical preparation, and implant osteotomy modification:
- Bone Trephine Ø3.8 / 6.0
- Bone Trephine Ø4.8 / 5.0
- Bone Trephine Ø5.8 / 6.5
- Bone Trephine Ø7.0 / 8.9
2. Tissue Punches
Designed for atraumatic soft tissue removal and gingival access preparation:
- Tissue Punch Ø3.0 / 6.0
- Tissue Punch Ø4.0 / 5.0
- Tissue Punch Ø5.0 / 5.0
3. Trephines with Stopper
Trephine instruments with integrated stopper control for precise depth limitation during bone manipulation procedures.
4. Stoppered Trephines
Precision depth-controlled trephine instruments designed for predictable surgical preparation and protection of anatomical structures.
5. Extension Adapter
Allows improved accessibility and instrument reach during posterior surgical procedures.
6. Universal Implant Driver Connections
Compatible implant driver interfaces included in the set:
- H 2.1
- CH 2.3
- CH 2.43
Designed for compatibility with multiple implant systems and prosthetic platforms.
7. Screw and Cover Screw Instruments
- Set for Cover Screw Set
- Keys 1.25
Designed for prosthetic screw handling and implant component manipulation.
8. Ratchet Components
9. Hex Ratchet Adapter
10.Hand Driver Adapter
Compatible with universal implant surgical ratchet systems.
Suitable for
- Gum tissue manipulation
- Bone manipulation procedures
- Ridge preparation
- Bone harvesting
- Cortical bone preparation
- Implant osteotomy modification
- Soft tissue punch procedures
- Implant surgery
- Oral implantology applications
Specifications
- Product type: Surgical set for gum and bone manipulation
- Instrument system: Trephine and tissue manipulation kit
- Compatibility: Universal implant surgical systems
- Material: Medical-grade surgical materials
- Surface finish: Precision polished surgical surfaces
- Sterilization: Fully autoclavable
Indications for Use
Intended for surgical soft tissue and bone manipulation during:
- Implant surgery
- Ridge preparation procedures
- Bone harvesting procedures
- Soft tissue access preparation
- Implant osteotomy modification
- Oral surgical implant procedures
Sterilization
All instruments must be sterilized before use in an autoclave at: 135°C (274°F)
Advantages
- Complete gum and bone manipulation surgical kit
- Precision trephine system
- Controlled depth surgical preparation
- Improved soft tissue management
- Bone harvesting capability
- Universal implant driver compatibility
- Enhanced surgical accessibility
- Organized surgical cassette system
- High-strength medical-grade construction
- Excellent corrosion resistance
- Fully autoclavable
- Designed for predictable implant surgical procedures
Reviews
There are no reviews for this product, be the first to leave your review.
Surgical Set for Gum / Bone Manipulation
Intended Use
The Surgical Set for Gum / Bone Manipulation is intended for surgical soft tissue and bone manipulation during dental implant procedures. The set is designed for professional use by qualified dental clinicians and oral surgeons for preparation of implant osteotomies, bone harvesting, gingival tissue access, ridge manipulation, and implant site modification.
The set is suitable for:
- Bone manipulation procedures
- Soft tissue punch procedures
- Ridge preparation
- Bone harvesting
- Implant osteotomy preparation
- Implant surgery
- Oral implantology applications
- Set Components and Clinical Use
- Bone Trephines
The bone trephines are intended for:
- Bone harvesting
- Cortical bone preparation
- Implant osteotomy modification
- Bone removal procedures
Included trephines: Ø3.8 / 6.0, Ø4.8 / 5.0, Ø5.8 / 6.5, Ø7.0 / 8.9.
Directions for Use
1. Select the appropriate trephine diameter.
2. Attach the trephine securely to the surgical driver system.
3. Use external irrigation during drilling.
4. Advance the instrument carefully with controlled pressure.
5. Avoid excessive force or overheating.
Tissue Punches
The tissue punches are intended for atraumatic gingival tissue access preparation.
Included tissue punches: Ø3.0 / 6.0, Ø4.0 / 5.0, Ø5.0 / 5.0.
Directions for Use
1. Select the appropriate tissue punch diameter.
2. Position the punch over the surgical site.
3. Apply gentle rotational pressure to remove soft tissue.
4. Remove tissue carefully without damaging surrounding structures.
Trephines with Stopper
The stopper-controlled trephines are intended for controlled depth preparation and protection of anatomical structures.
Directions for Use
1. Select the required stopper length.
2. Verify secure stopper positioning before use.
3. Perform drilling with external irrigation.
4. Stop advancement when the stopper reaches the bone surface.
5. Implant Driver Connections
Included driver interfaces: H 2.1, CH 2.3, CH 2.43.
These adapters are intended for compatibility with various implant systems and prosthetic components.
Directions for Use
1. Select the compatible driver interface.
2. Securely attach the adapter to the implant driver or ratchet.
3. Confirm stable engagement before applying torque.
Extension Adapter (EXT)
The extension adapter is intended to improve accessibility during posterior implant procedures and anatomically restricted clinical situations.
Directions for Use
1. Attach the extension adapter securely to the driver system.
2. Verify proper instrument stability before clinical use.
3. Screw and Cover Screw Instruments
Included components:
Set for Cover Screw Set
Keys 1.25
These instruments are intended for:
- Cover screw placement
- Cover screw removal
- Prosthetic screw manipulation
Directions for Use
1. Select the appropriate key or screw instrument.
2. Insert into the compatible implant component.
3. Apply controlled rotational force during tightening or loosening.
General Clinical Instructions
Before Use
- Inspect all instruments carefully before each procedure.
- Verify that all instruments are clean, undamaged, and fully sterilized.
- Ensure compatibility with the implant system being used.
During Use
- Use external irrigation during drilling procedures.
- Apply controlled pressure and avoid excessive force.
- Maintain proper surgical protocol and sterile technique.
- Monitor drilling depth carefully when using stopper systems.
After Use
- Remove biological debris immediately after use.
- Clean and disinfect instruments according to validated surgical protocols.
- Inspect instruments for wear or damage before reuse.
Cleaning and Sterilization
Manual or ultrasonic cleaning is recommended.
Use non-corrosive cleaning agents suitable for surgical instruments.
Rinse thoroughly with distilled or deionized water.
Dry completely before sterilization.
Sterilization
- All instruments must be sterilized before use in a steam autoclave: Temperature: 135°C (274°F)
- Follow validated autoclave sterilization procedures.
Warnings and Precautions
- For professional dental use only.
- Use only with compatible implant systems and surgical drivers.
- Avoid excessive drilling pressure or overheating.
- Continuous irrigation is recommended during drilling procedures.
- Inspect all instruments prior to each procedure.
- Damaged instruments must not be used.
- Repeated sterilization cycles may cause normal wear over time.
Storage
Store instruments in a clean, dry, and protected environment after sterilization.
Materials
- Medical-grade surgical stainless steel
- Medical-grade surgical alloys
