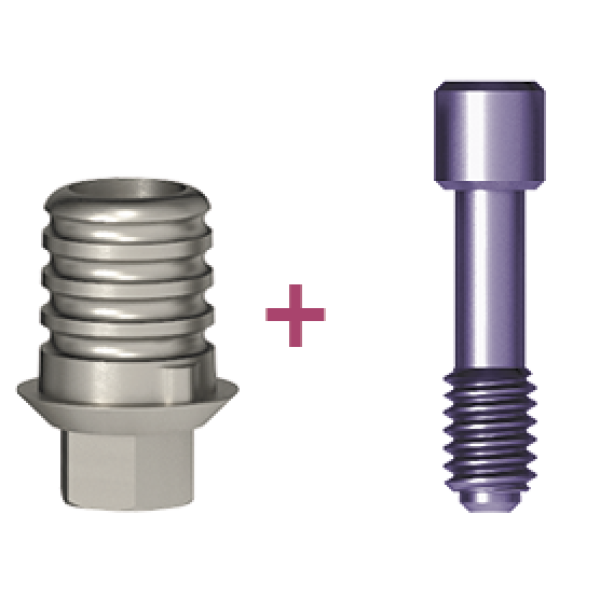

Titanium Base for Short Implant H2.43

Titanium Base for Short Implant H2.43

Intended Use

The Titanium Base for Short Implant H2.43 is intended for the fabrication and fixation of custom zirconia abutments and crowns on compatible Internal Hex H2.43 short implants. The component serves as a prosthetic interface between the implant and the definitive restoration, providing stable support for long-term implant-supported prosthetic rehabilitation.

The titanium base is designed for both screw-retained and cement-retained permanent restorations and is suitable for single-tooth restorations and implant-supported prosthetic applications.

Indications

The Titanium Base for Short Implant H2.43 is indicated for:

- Custom zirconia abutments
- Custom zirconia crowns
- Screw-retained restorations
- Cement-retained restorations
- Single-tooth restorations
- Permanent implant restorations
- CAD/CAM restorations
- Implant rehabilitation procedures

Laboratory Procedure

Restoration Fabrication

1. Verify compatibility of the Titanium Base with the H2.43 implant platform.
2. Inspect the component for cleanliness and integrity.
3. Design the custom zirconia abutment or crown according to the treatment plan.
4. Fabricate the restoration using conventional laboratory techniques or CAD/CAM technology.
5. Bond or secure the zirconia restoration to the titanium base according to the selected restorative protocol.
6. Verify passive fit, proper alignment, and emergence profile before clinical delivery.

Clinical Procedure

Titanium Base Installation

1. Confirm successful osseointegration of the implant.
2. Clean and inspect the implant connection.
3. Position the Titanium Base onto the Internal Hex H2.43 implant platform.
4. Verify engagement of the anti-rotation feature.
5. Ensure complete seating of the titanium base.

Restoration Fixation

For Screw-Retained Restorations

1. Seat the completed zirconia restoration onto the implant.
2. Insert the Titanium Screw (701207).
3. Tighten the screw according to the implant system manufacturer's recommended torque values.
4. Verify complete seating and stability of the restoration.
5. Check occlusion and adjust if necessary.
6. Seal the screw access channel according to the restorative protocol.

For Cement-Retained Restorations

1. Verify complete seating of the titanium base.
2. Cement the custom zirconia restoration onto the titanium base according to the cement manufacturer's instructions.
3. Remove excess cement carefully.
4. Verify occlusion and final restoration fit.

Final Restoration Verification

Before completion of treatment:

1. Verify passive fit of the restoration.
2. Confirm complete seating of the titanium base.
3. Verify anti-rotation engagement.
4. Check restoration stability.
5. Verify proper occlusal contacts.
6. Confirm esthetics and soft tissue adaptation.

Removal Procedure

Screw-Retained Restoration

1. Remove restorative material from the screw access channel.
2. Loosen the Titanium Screw (701207) using the appropriate driver.
3. Remove the restoration carefully.
4. Inspect all components before reuse or replacement.

Cement-Retained Restoration

1. Remove the prosthetic restoration according to the clinical protocol.
2. Inspect the titanium base and implant connection.
3. Replace damaged components if necessary.

Cleaning and Sterilization

- Remove all contaminants and manufacturing residues.
- Clean using approved medical device cleaning procedures.
- Rinse thoroughly with distilled or deionized water.
- Dry completely before sterilization.
- Sterilize before use in a steam autoclave at: 135°C (274°F)
- Follow validated sterilization procedures and local regulatory requirements.

Warnings and Precautions

- For professional dental use only.
- Use only with compatible Internal Hex H2.43 short implant systems.
- Use only with Titanium Screw (701207).
- Verify engagement of anti-rotation features before final tightening.
- Follow recommended torque values.
- Do not use damaged or deformed components.
- Components showing signs of wear, deformation, or damage must be replaced.
- Ensure passive fit of the restoration before final fixation.

Storage

Store in a clean, dry environment protected from contamination, moisture, and mechanical damage.
