Product Description

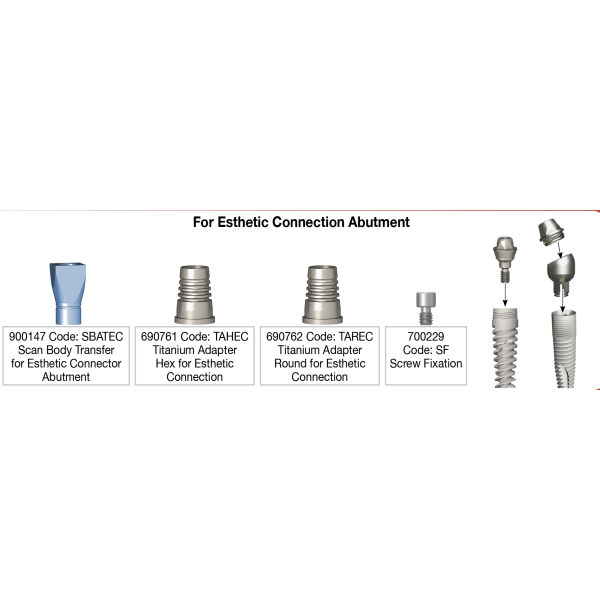

Titanium Base for Lock Esthetic Connector
The Titanium Base for Lock Esthetic Connector is a precision-engineered prosthetic component designed for screw-retained restorations on osseointegrated implants. It is specifically developed for use with esthetic connector abutments (Ø 4.7 mm), providing a stable and reliable foundation for customized zirconia crowns and multi-unit bridge restorations.
This titanium base features a straight design with a defined shoulder and incorporates advanced anti-rotation elements. These mechanisms prevent rotation both between the titanium base and the esthetic abutment, as well as between the base and the prosthetic restoration, ensuring precise positioning and long-term mechanical stability.
Manufactured from high-quality medical-grade titanium alloy (Ti6Al4V ASTM F136), the component delivers excellent strength, durability, and biocompatibility for demanding clinical applications.
Technical Specifications
- Diameter: 4.7 mm
- Body Height: 6.0 mm
- Shoulder Height: 1.0 mm
Key Features
- Designed for screw-retained restorations (single and multi-unit)
- Compatible with esthetic connector abutments Ø 4.7 mm (e.g., 611547 series)
- Dual anti-rotation mechanism for enhanced stability
- High-strength medical-grade titanium alloy
- Optimized for customized zirconia restorations
- Reliable connection through esthetic abutment to implant H2.43
Indications & Applications
The Titanium Base is intended for:
- Fabrication of customized zirconia crowns and bridges
- Multi-unit restorations on two or more implants
- Screw-retained prosthetic solutions
- Use with esthetic connector abutments Ø 4.7 mm
Connection & Compatibility
Direct connection through esthetic abutment to implant H2.43 using:
- Screw 701205 – for shoulder height 0.5 mm (610547 + implant H2.43)
- Screw 701215 – for shoulder height 1.5 mm (611547 + implant H2.43)
- Screw 701225 – for shoulder height 2.5 mm (612547 + implant H2.43)
Implant Compatibility (H2.43)
Used together with:
- UNIQUE Implants: Ø 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm
- PERFECT Implants: Ø 3.0 mm, 4.2 mm, 5.0 mm, 6.0 mm
- PRIMA Implants: Ø 3.3 mm, 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm
Clinical Benefits
- Secure and stable prosthetic connection
- Anti-rotation design ensures precise alignment
- Suitable for both single and multi-unit restorations
- Supports accurate and predictable prosthetic outcomes
Sterilization & Handling
- Supplied non-sterile
- Must be sterilized before use
- Sterilize in autoclave at 135°C / 274°F
Advantages
- High precision and durability
- Reliable anti-rotation stability
- Compatible with multiple implant systems
- Optimized for esthetic and functional restorations
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Titanium Base for Lock Esthetic Connector
Indications for Use
- Fabrication of customized zirconia crowns and bridges
- Screw-retained restorations on two or more implants
- Use with esthetic connector abutments Ø 4.7 mm
- Suitable for single and multi-unit restorations
Contraindications
- Not intended for use in patients with known allergies to titanium
- Do not use with incompatible implant systems
Warnings
- For use by qualified dental professionals only
- Improper use may result in prosthetic misfit or failure
- Ensure proper seating and fixation before final restoration
Precautions
- Ensure the component is clean and sterile before use
- Use appropriate fixation screws according to abutment height
- Avoid excessive force during placement
- Follow standard prosthetic and laboratory protocols
Instructions for Use
- Verify compatibility with esthetic connector abutment Ø 4.7 mm and implant system H2.43.
- Clean and sterilize the titanium base prior to use.
- Place the titanium base onto the esthetic abutment.
- Secure the assembly using the appropriate fixation screw:
701205 (0.5 mm shoulder)
701215 (1.5 mm shoulder)
701225 (2.5 mm shoulder)
- Ensure proper seating and stability.
- Fabricate the customized zirconia crown or bridge.
- Cement or finalize the prosthetic restoration onto the titanium base.
- Verify fit, occlusion, and stability before final placement.
Cleaning and Sterilization
- Supplied non-sterile
- Clean using manual or ultrasonic cleaning methods
- Sterilize in autoclave at 135°C / 274°F
Storage
- Store in a clean, dry environment
- Keep in original packaging until use
