Open Transfer for Implant Hex 2.43 Short System

Open Transfer for Implant Hex 2.43 Short System

General Information

Before using DMi products, the dentist, maxillofacial surgeon, or dental technician should carefully read the indications, contraindications, recommendations, warnings, and instructions, as well as all additional product information, including product descriptions, surgical and prosthetic manuals, catalogs, and related documentation.

DMi also recommends participation in relevant continuing education courses conducted on-site or remotely by authorized DMi specialists.

Detailed documentation and training information are available through authorized DMi representatives and on the company website:
www.dmimplant.online

Product Description

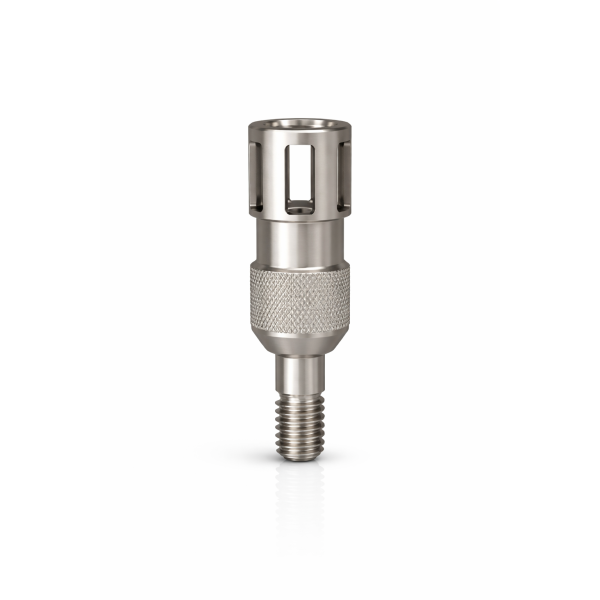

The Open Transfer for Implant Hex 2.43 Short System is intended for open tray impression procedures and consists of two components:

- Cylindrical transfer sleeve
- Fastening screw
- Technical Specifications
- Connection: Internal Hex 2.43
- System: Short System
- Material: Stainless steel

The transfer sleeve is a supragingival component featuring a precision-machined internal Hex 2.43 connection. The sleeve engages the implant connection with a secure locking effect and is fixed directly to the implant using a fastening screw.

The transfer is installed and removed using a 1.27 mm hex driver (431412 or equivalent).

The short-profile design provides improved access and handling in limited restorative spaces and posterior regions.

Warnings

- The product is intended for single-patient use only.
- The product is supplied non-sterile.
- Sterilization in an autoclave at 135°C (275°F) before clinical use is recommended.
- The dentist, maxillofacial surgeon, or dental technician must be familiar with the clinical protocol for using implant impression transfers.
- Improper handling or incorrect clinical use may affect impression accuracy and prosthetic outcomes.

Indications

The impression transfer is intended for use in implant prosthetics to accurately transfer the position of an osseointegrated implant from the oral cavity to a laboratory model using the open tray impression technique.

Recommended for:

- Limited interocclusal space
- Posterior restorations
- Multi-unit restorations
- Cases requiring short-profile prosthetic components
- Contraindications
- Lack of implant osseointegration
- Allergy or hypersensitivity to metals
- Trismus of masticatory muscles
- Limited mouth opening
- Increased gag reflex

Procedure for Use

An open-tray impression using an implant transfer allows highly accurate transfer of the implant position from the oral cavity to the working model.

Clinical Procedure

1. Remove the gingiva former using a 1.27 mm hex driver.
2. Insert the Open Transfer Hex 2.43 Short System into the implant internal hex connection.
3. Insert the fastening screw through the hollow opening of the transfer and secure the transfer to the implant using a 1.27 mm hex driver.
4. Cover the occlusal opening of the fastening screw with wax to prevent impression material from entering the screw channel.
5. Prepare the impression tray with an occlusal opening corresponding to the position of the transfer screw.
6. Take the impression using the “sandwich” technique:
   - Low-viscosity material around the transfer
   - High-viscosity material in the tray
   - Medium-viscosity material may also be used when clinically appropriate.
7. Remove excess impression material from the occlusal access opening to expose the fastening screw.
8. After complete polymerization of the impression material, unscrew the fastening screw from the implant using a 1.27 mm hex driver.
9. Remove the impression together with the transfer from the oral cavity.
10. Attach the corresponding implant analogue Hex 2.43 to the transfer using the fastening screw.
11. Transfer the assembled impression to the dental laboratory.
12. The dental technician fabricates gingival imitation material around the implant analogue area and pours the impression using dental stone.
13. After complete hardening of the model, the fastening screw is unscrewed and the impression with transfer is separated from the laboratory analogue.
14. The implant analogue remains embedded within the cast, accurately reproducing the intraoral implant position.
15. The resulting master model is used for fabrication of the implant-supported prosthetic restoration.

Sterilization

The product is supplied non-sterile and must be sterilized before use in an autoclave at: 135°C (275°F)
Single-patient use only.

Storage

Store in a clean, dry environment at room temperature away from direct sunlight and contamination.

Disclaimer

DMi Technology LLC. is not responsible for complications, injuries, or other negative consequences resulting from:

- Incorrect clinical indications
- Improper prosthetic technique
- Incorrect component selection
- Improper use or handling of instruments and components
- Failure to follow the instructions for use

The treating dentist, maxillofacial surgeon, and dental technician are solely responsible for appropriate clinical and laboratory application of the product.

DMi recommends appropriate professional training and participation in specialized DMi educational programs prior to use.
