Product Description

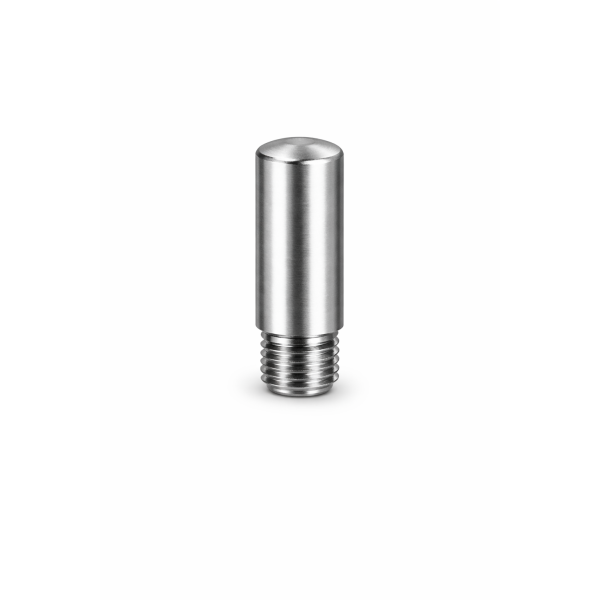

The Titanium Slim Healing Cap for Abutment is a precision-engineered temporary prosthetic component designed to protect the abutment and facilitate soft tissue healing following implant placement and abutment installation. The healing cap assists in the formation of a stable gingival cuff around the implant restoration site, promoting optimal soft tissue contour and emergence profile development.
Manufactured from high-quality Ti6Al4V medical titanium alloy ASTM F136, the healing cap provides excellent biocompatibility, corrosion resistance, mechanical strength, and long-term clinical reliability.
The component is designed for use with Multi-Unit Abutments (610537, etc.) and is installed onto the abutment to protect the prosthetic connection during the healing phase while supporting gingival tissue shaping.
The smooth polished outer surface minimizes plaque accumulation and promotes healthy soft tissue adaptation during the healing process.
The Titanium Slim Healing Cap may be used in:
- One-stage implant procedures, where it is installed immediately following placement of the implant and abutment (610520, etc.)
- Two-stage implant procedures, during installation of the abutment (610520, etc.) on a fully osseointegrated implant
The healing cap is secured to the abutment using a titanium fixation screw with M1.6 thread (701200) and is installed using a 1.25 mm hex driver.
Suitable for:
- Soft tissue healing
- Gingival cuff formation
- Multi-unit prosthetic restorations
- One-stage implant procedures
- Two-stage implant procedures
- Implant prosthetic rehabilitation
- Oral implantology applications
Specifications
- Product type: Titanium slim healing cap for abutment
- Material: Ti6Al4V medical titanium alloy ASTM F136
- Shoulder diameter: 4.7 mm
- Shoulder height: 5.0 mm
- Surface finish: Smooth polished surface
- Fixation screw: Titanium screw M1.6 thread (701200)
- Driver compatibility: 1.25 mm hex key
- Sterilization: Fully autoclavable
Compatible Components
- Multi-Unit Abutment (610537, etc.)
- Abutment (610520, etc.)
- Titanium Fixation Screw M1.6 (701200)
- 1.25 mm Hex Driver
Indications for Use
Intended for temporary placement on compatible abutments during:
- Soft tissue healing
- Gingival cuff formation
- One-stage implant procedures
- Two-stage implant procedures
- Implant restorative procedures
- Oral surgical implant procedures
Sterilization
The component must be sterilized before use in an autoclave at: 135°C (274°F)
Advantages
- Promotes predictable gingival cuff formation
- Supports soft tissue healing and contouring
- Designed for use with multi-unit abutments
- Slim profile for improved soft tissue management
- Smooth polished surface reduces plaque retention
- High-strength Ti6Al4V ASTM F136 titanium construction
- Excellent biocompatibility
- Excellent corrosion resistance
- Secure fixation with M1.6 titanium screw
- Compatible with one-stage and two-stage implant protocols
- Fully autoclavable
- Designed for predictable implant prosthetic outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Titanium Slim Healing Cap for Abutment
Intended Use
The Titanium Slim Healing Cap for Abutment is intended for temporary placement on compatible abutments to protect the prosthetic connection and promote formation of a healthy gingival cuff during the healing phase following implant surgery.
The healing cap is designed for use with Multi-Unit Abutments (610537, etc.) and compatible abutments (610520, etc.) during implant restorative procedures.
Indications
The Titanium Slim Healing Cap is indicated for:
- Soft tissue healing around dental implants
- Gingival cuff formation
- Emergence profile development
- Protection of the abutment connection during healing
- One-stage implant procedures
- Two-stage implant procedures
- Multi-unit prosthetic restorations
Compatible Components
- Multi-Unit Abutment (610537, etc.)
- Abutment (610520, etc.)
- Titanium Fixation Screw M1.6 (701200)
- 1.25 mm Hex Driver
Clinical Use
One-Stage Implant Procedure
1. Place the dental implant according to the surgical protocol.
2. Install the compatible abutment (610520, etc.).
3. Position the Titanium Slim Healing Cap onto the abutment.
4. Insert the titanium fixation screw M1.6 (701200).
5. Tighten the fixation screw using a 1.25 mm hex key.
6. Verify complete seating and stability of the healing cap.
7. Suture the soft tissue as required.
The healing cap remains in place during the soft tissue healing period.
Two-Stage Implant Procedure
1. Following successful osseointegration, expose the implant surgically.
2. Remove the cover screw according to the implant protocol.
3. Install the compatible abutment (610520, etc.).
4. Position the Titanium Slim Healing Cap onto the abutment.
5. Secure the healing cap using the titanium fixation screw M1.6 (701200).
6. Tighten the screw with a 1.25 mm hex driver.
7. Confirm proper seating and soft tissue adaptation.
The healing cap remains in place until the final prosthetic restoration is initiated.
Removal Procedure
- Remove the fixation screw using a 1.25 mm hex key.
- Carefully remove the healing cap from the abutment.
- Proceed with impression taking or prosthetic restoration according to the treatment plan.
Cleaning and Sterilization
- Clean using approved medical instrument cleaning procedures.
- Remove all contaminants before sterilization.
- Rinse thoroughly with distilled or deionized water.
- Sterilize in a steam autoclave before use: Temperature 135°C (274°F)
- Follow validated sterilization procedures according to local clinical protocols.
Warnings and Precautions
- For professional dental use only.
- Use only with compatible abutments and fixation screws.
- Verify complete seating before tightening the fixation screw.
- Do not use damaged components.
- Ensure proper soft tissue management during healing.
- Reuse only if permitted by local clinical protocols and after appropriate cleaning and sterilization.
- Components showing wear, deformation, or damage must be discarded.
Storage
Store in a clean, dry environment protected from contamination and mechanical damage.
