Product Description

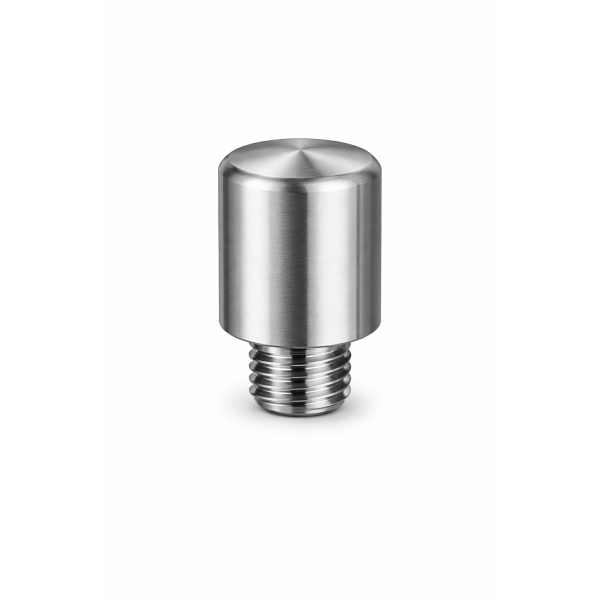

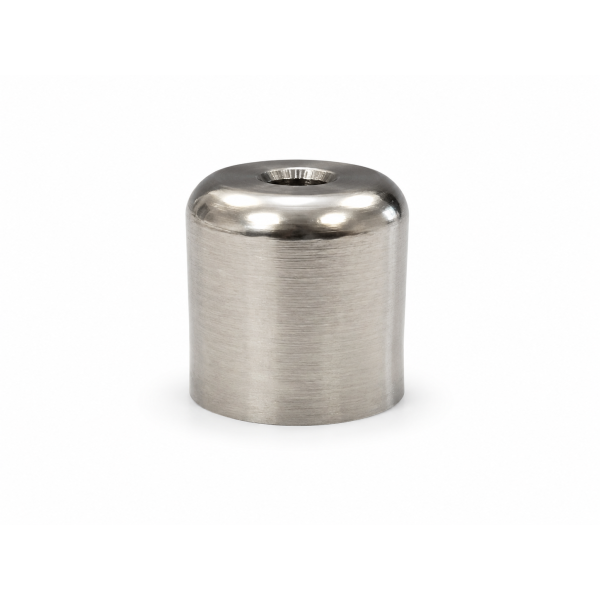

The Titanium Healing Cap for Abutment is a precision prosthetic component designed for temporary soft tissue management and gingival contour formation around implant-supported restorations.
The healing cap is intended to cover the multi-unit abutment (Ref. 610548, etc.) installed on a dental implant, promoting the formation of a stable gingival cuff during the healing phase of implant treatment. The smooth outer surface supports soft tissue healing and helps maintain optimal peri-implant tissue contours.
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, the healing cap provides excellent biocompatibility, corrosion resistance, mechanical strength, and long-term dimensional stability for implant prosthetic applications.
The component is fixed to the abutment using a titanium screw with M2 thread (Ref. 700229) and is compatible with a 1.25 mm hex driver.
Key Features
- Designed for gingival cuff formation
- Smooth outer surface for soft tissue healing
- Compatible with multi-unit abutments (610548, etc.)
- Direct fixation using titanium screw M2 (700229)
- Precision-machined titanium construction
- Compatible with 1.25 mm hex driver
- Suitable for one-stage and two-stage implantation protocols
- Designed for implant soft tissue management
Available Versions / References
- Multi-unit abutment compatibility: 610548, etc.
- Titanium fixation screw M2: 700229
Technical Specifications
- Shoulder diameter: 4.7 mm
- Shoulder height: 5.0 mm
- Hex connection: 1.25 mm
Material
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, providing:
- High biocompatibility
- Excellent corrosion resistance
- Mechanical strength and durability
- Smooth surface for soft tissue healing
- Reliability for implant prosthetic applications
Clinical Application
- Gingival tissue contour formation
- Temporary coverage of implant abutments
- One-stage implantation procedures
- Two-stage implantation procedures
- Soft tissue healing management around implants
Indications for Use
- Immediate placement after implant + abutment installation
- Placement during second-stage surgical procedures
- Formation and maintenance of peri-implant soft tissue contours
Sterilization
Before clinical use, the product must be sterilized in an autoclave at 135°C / 274°F.
Advantages
- Supports predictable soft tissue healing
- Promotes stable gingival contour formation
- Smooth and biocompatible titanium surface
- Compatible with multi-unit abutment systems
- Durable and corrosion-resistant construction
- Easy placement and removal with standard hex driver
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Titanium Healing Cap for Abutment
Intended Use
The Titanium Healing Cap is intended for:
- Gingival cuff formation around implant restorations
- Temporary coverage of implant abutments
- Soft tissue healing management
- One-stage and two-stage implant procedures
Indications
The product is indicated for use with:
- Multi-unit abutments (Ref. 610548, etc.)
- Implant-supported restorations
- One-stage implantation procedures
- Two-stage implantation procedures
- Titanium fixation screw M2 (700229)
Contraindications
Do not use the product in:
- Patients with known hypersensitivity to titanium alloys
- Clinical situations incompatible with implant-supported restorations
- Cases where the component is damaged, deformed, or worn
Warnings
- Product is supplied non-sterile.
- Sterilization before clinical use is mandatory.
- Use only compatible prosthetic components and fixation screws.
- Improper seating may affect soft tissue healing and component stability.
- Do not use excessive tightening force.
- Intended for professional dental use only.
Precautions
- Verify compatibility with the implant system and prosthetic components before use.
- Inspect the component before clinical application.
- Ensure complete seating of the healing cap onto the abutment.
- Use only compatible titanium screw M2 (700229).
- Use only a 1.25 mm hex driver.
- Follow standard implant surgical and prosthetic protocols.
Instructions for Clinical Use
1. Preparation
- Verify compatibility of the implant, abutment, and healing cap.
- Clean and dry the implant-abutment connection area before placement.
2. Placement of the Healing Cap
- Position the Titanium Healing Cap onto the multi-unit abutment (Ref. 610548, etc.).
- Secure the healing cap using titanium screw M2 (700229).
- Tighten using a 1.25 mm hex driver according to standard clinical protocols.
3. Clinical Application
For one-stage implantation:
- Install the healing cap immediately after implant and abutment placement.
For two-stage implantation:
- Install the healing cap during second-stage surgery after implant osseointegration.
4. Healing Phase
- Monitor soft tissue healing and gingival contour formation during follow-up visits.
- Remove the healing cap when prosthetic restoration procedures are initiated.
Cleaning and Sterilization
- Sterilization Parameters
- Autoclave sterilization
- Temperature: 135°C / 274°F
Storage
- Store in a clean, dry environment.
- Protect from contamination, moisture, and mechanical damage.
- Avoid exposure to corrosive substances.
