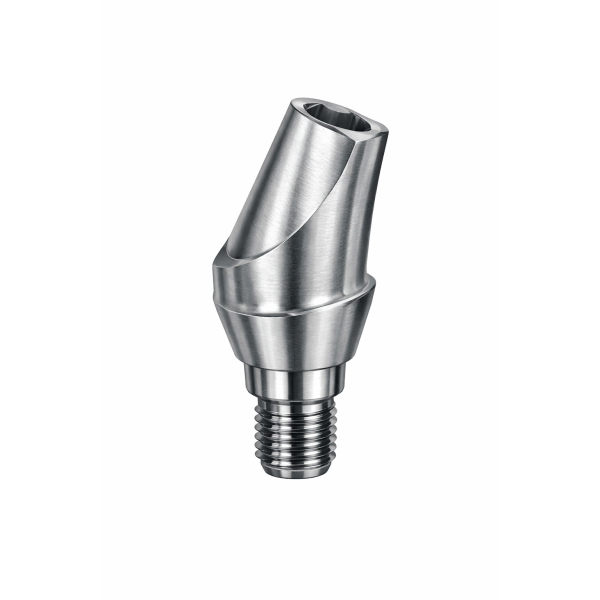

Titanium Conical CH2.1 Angular Esthetic Abutment 30-1
The Titanium Conical CH2.1 Angular Esthetic Abutment 30-1 is a precision prosthetic component designed for angled screw-retained implant restorations on conical implant systems with CH2.1 cone + hex connection.
The abutment features a 30° angulation relative to the implant axis and includes an anti-rotation cone + hexagon 2.1 mm connection with an M1.6 UNF prosthetic thread. The integrated shoulder design provides improved esthetic emergence profile and prosthetic support for implant restorations in anatomically challenging clinical situations.
The component connects directly to the internal cone + hex connection of the conical implant CH2.1 mm using titanium fixation screw 701203 into the internal implant thread.
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, the abutment provides excellent mechanical strength, biocompatibility, corrosion resistance, and long-term dimensional stability for implant prosthetic applications.
The abutment is compatible with plastic sheath 680047, titanium base 690764 (etc.), and titanium prosthetic screw 701200 for screw-retained restorative workflows.
Key Features
- 30° angular prosthetic correction
- Conical CH2.1 cone + hex implant connection
- Anti-rotation cone + hexagon 2.1 mm interface
- M1.6 UNF prosthetic thread
- Integrated esthetic shoulder design
- Direct implant connection using titanium screw 701203
- Compatible with screw-retained restorative systems
- Precision-machined titanium construction
- Compatible with 1.25 mm hex driver
Available Versions / References
- Titanium fixation screw: 701203
- Plastic sheath: 680047
- Titanium base: 690764, etc.
- Prosthetic screw: 701200
Compatible Implant Systems
- UNIQUE MODULAR Implant (UMI): 3.3 mm, 3.75 mm
- PERFECT MODULAR Implant (PMI): 3.75 mm, 4.2 mm
Technical Specifications
- Diameter: 4.7 mm
- Shoulder height: 1.0 mm
- Angulation: 30°
- Implant connection: CH2.1 cone + hex
- Prosthetic thread: M1.6 UNF
- Hex connection: 1.25 mm
Material
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, providing:
- High mechanical strength
- Excellent biocompatibility
- Corrosion resistance
- Precision and long-term durability
- Reliability for implant prosthetic restorations
- Clinical / Laboratory Application
- Angled screw-retained implant restorations
- Esthetic implant prosthetic rehabilitation
- Implant angulation correction
- Multi-component prosthetic workflows
- Prosthetic restorations on conical implant systems
- Implant-supported permanent restorations
Sterilization
Before clinical use, the product must be sterilized in an autoclave at 135°C / 274°F.
Advantages
- Corrects implant angulation for improved prosthetic alignment
- Stable anti-rotational cone + hex connection
- Improved esthetic emergence profile
- Reliable support for screw-retained restorations
- Durable and biocompatible titanium construction
- Compatible with modular restorative components
- Supports accurate and predictable prosthetic outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Titanium Conical CH2.1 Angular Esthetic Abutment 30-1
Intended Use
The Titanium Angular Esthetic Abutment is intended for:
- Angled screw-retained implant restorations
- Esthetic implant-supported prosthetic rehabilitation
- Implant angulation correction
- Prosthetic restoration on conical implant systems
- Implant-supported permanent restorations
Indications
The product is indicated for use with:
- CH2.1 cone + hex implant connections
- UNIQUE MODULAR Implant (UMI) systems
- PERFECT MODULAR Implant (PMI) systems
- Screw-retained prosthetic restorations
Compatible prosthetic components:
- Plastic sheath 680047
- Titanium base 690764, etc.
- Titanium prosthetic screw 701200
Contraindications
Do not use the product in:
- Patients with known hypersensitivity to titanium alloys
- Clinical situations incompatible with implant-supported restorations
- Cases where the component is damaged, deformed, or worn
Warnings
- Product is supplied non-sterile.
- Sterilization before clinical use is mandatory.
- Use only compatible implant systems, prosthetic components, and fixation screws.
- Improper seating may result in prosthetic misfit or mechanical complications.
- Do not use excessive tightening force.
- Intended for professional dental use only.
Precautions
- Verify compatibility with the implant system before use.
- Inspect the component before clinical application.
- Ensure complete seating of the abutment into the implant connection.
- Use only compatible titanium fixation screw 701203.
- Use only a 1.25 mm hex driver.
- Follow standard implant prosthetic and infection control procedures.
Instructions for Clinical Use
1. Preparation
- Verify implant compatibility and prosthetic treatment plan.
- Clean and dry the implant connection area before placement.
2. Placement of the Abutment
- Position the Titanium Conical CH2.1 Angular Esthetic Abutment 30-1 into the implant internal cone + hex connection.
- Align the anti-rotation hexagon correctly within the implant interface.
- Secure the abutment using titanium fixation screw 701203.
- Tighten using a 1.25 mm hex driver according to standard prosthetic protocols.
3. Prosthetic Procedure
- Attach compatible restorative components including:
- Plastic sheath 680047
- Titanium base 690764, etc.
- Titanium prosthetic screw 701200
- Verify passive fit and prosthetic alignment before final restoration fixation.
4. Final Restoration
- Complete the screw-retained restorative procedure according to standard clinical protocols.
- Verify occlusion, prosthetic stability, and final seating.
Cleaning and Sterilization
Sterilization Parameters: Autoclave sterilization, Temperature: 135°C / 274°F
Follow validated sterilization procedures according to local regulations and clinical protocols.
Storage
- Store in a clean, dry environment.
- Protect from contamination, moisture, and mechanical damage.
- Avoid exposure to corrosive substances.
