Product Description

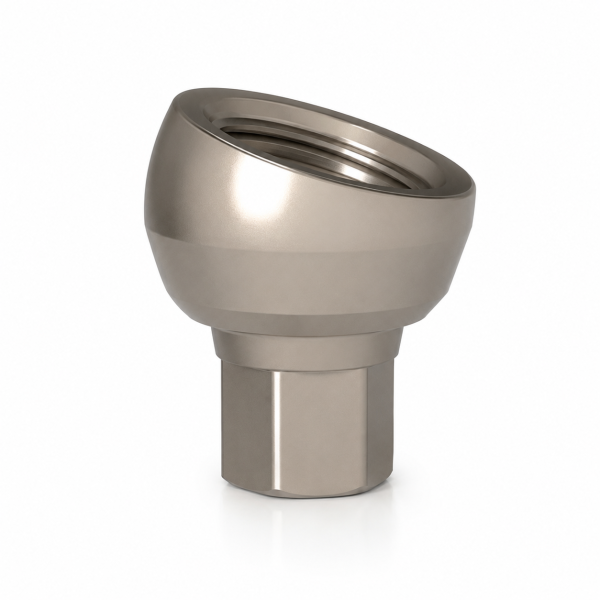

The Titanium Angular Adapter 17° and 30° for narrow implant H2.1 is a precision prosthetic component designed for angled implant-supported restorations on implants with H2.1 internal hex connection. The adapter features an anti-rotation element with a 2.1 mm hexagon and an M3.5 UNF prosthetic thread for attachment of the second part of a multi-unit restoration system.
The component provides a 17° angulation relative to the implant axis, allowing correction of implant angulation and improved prosthetic positioning in complex restorative cases. It connects directly to the implant internal hex using titanium fixation screw 701201.
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, the angular adapter provides excellent mechanical strength, biocompatibility, corrosion resistance, and long-term dimensional stability for implant prosthetic applications.
The component is intended for use in multi-unit prosthetic restorations and is compatible with selected UNIQUE and PERFECT implant systems.
Key Features
- 17° angular prosthetic correction
- Anti-rotation design with 2.1 mm hexagon
- M3.5 UNF prosthetic connection thread
- Direct connection to implant H2.1 interface
- Precision-machined titanium construction
- Compatible with multi-unit restorative systems
- Designed for implant angulation correction
- Compatible with 1.25 mm hex driver
Available Versions / References
- Titanium fixation screw: 701201
- Implant connection: H2.1 internal hex
- Prosthetic thread: M3.5 UNF
Compatible Implant Systems
- UNIQUE Implant: 3.0 mm, 3.3 mm
- PERFECT Implant: 3.75 mm
Technical Specifications
- Diameter: 4.5 mm
- Height: 1.0 mm
- Angulation: 17° and 30°
- Internal hex: 2.1 mm
- Prosthetic thread: M3.5 UNF
- Hex connection: 1.25 mm
Material
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, providing:
- High mechanical strength
- Excellent biocompatibility
- Corrosion resistance
- Precision and long-term durability
- Reliability for implant prosthetic restorations
Clinical / Laboratory Application
- Angled implant-supported restorations
- Multi-unit prosthetic restorations
- Implant angulation correction
- Screw-retained restorative procedures
- Prosthetic rehabilitation on osseointegrated implants
Sterilization
Before clinical use, the product must be sterilized in an autoclave at 135°C / 274°F.
Advantages
- Corrects implant angulation for improved prosthetic alignment
- Stable anti-rotational implant connection
- Reliable multi-unit prosthetic support
- Durable and biocompatible titanium construction
- Compatible with multiple implant systems
- Supports accurate and predictable prosthetic outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Titanium Angular Adapter H2.1
Intended Use
The Titanium Angular Adapter is intended for:
- Angled implant-supported prosthetic restorations
- Multi-unit restorative procedures
- Implant angulation correction
- Screw-retained implant prosthetic workflows
Indications
The product is indicated for use with:
- Implants with H2.1 internal hex connection
- Multi-unit prosthetic systems
- UNIQUE Implant systems (3.0 mm, 3.3 mm)
- PERFECT Implant systems (3.75 mm)
- Screw-retained prosthetic restorations
Contraindications
Do not use the product in:
- Patients with known hypersensitivity to titanium alloys
- Clinical situations incompatible with implant-supported restorations
- Cases where the component is damaged, deformed, or worn
Warnings
- Product is supplied non-sterile.
- Sterilization before clinical use is mandatory.
- Use only compatible implant systems, prosthetic components, and fixation screws.
- Improper seating may result in prosthetic misfit or mechanical complications.
- Do not use excessive tightening force.
- Intended for professional dental use only.
Precautions
- Verify compatibility with the implant system before use.
- Inspect the component before clinical application.
- Ensure complete seating of the adapter into the implant connection.
- Use only compatible titanium fixation screw 701201.
- Use only a 1.25 mm hex driver.
- Follow standard implant prosthetic and infection control procedures.
Instructions for Clinical Use
1. Preparation
- Verify implant compatibility and prosthetic treatment plan.
- Clean and dry the implant connection area before placement.
2. Placement of the Angular Adapter
- Position the Titanium Angular Adapter 17-1 H2.1 into the implant internal hex connection.
- Align the anti-rotation hexagon correctly within the implant interface.
- Secure the adapter using titanium fixation screw 701201.
- Tighten using a 1.25 mm hex driver according to standard prosthetic protocols.
3. Prosthetic Procedure
- Attach the second part of the multi-unit prosthetic system to the M3.5 UNF prosthetic thread.
- Verify prosthetic alignment and passive fit before final restoration fixation.
4. Final Restoration
- Complete the screw-retained restorative procedure according to standard clinical protocols.
- Verify occlusion, prosthetic stability, and final seating.
Cleaning and Sterilization
The product must be cleaned and sterilized before use.
- Sterilization Parameters
- Autoclave sterilization
- Temperature: 135°C / 274°F
- Follow validated sterilization procedures according to local regulations and clinical protocols.
Storage
- Store in a clean, dry environment.
- Protect from contamination, moisture, and mechanical damage.
- Avoid exposure to corrosive substances.
