Product Description

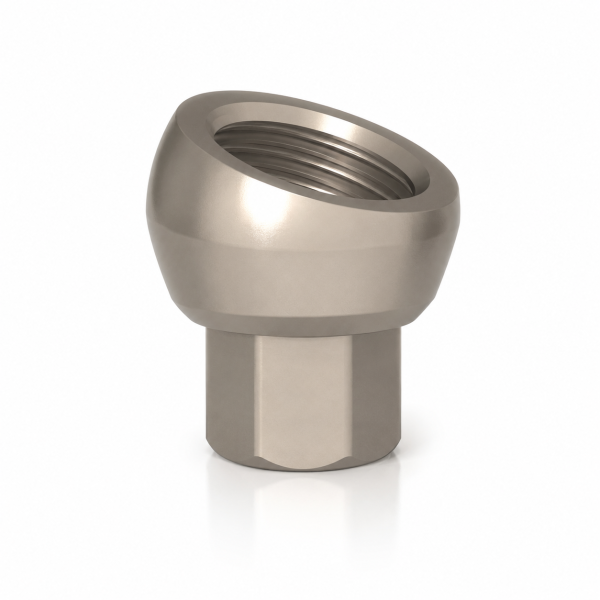

The Titanium Angular Adapter 17-1 H2.43 is a precision prosthetic component designed for angled implant-supported restorations on implants with H2.43 internal hex connection. The adapter features an anti-rotation element with a 2.43 mm hexagon and an M3.5 UNF prosthetic thread for attachment of the second part of a multi-unit restoration system.
The component provides a 17° angulation relative to the implant axis, allowing correction of implant angulation and improved prosthetic positioning in complex restorative cases. It connects directly to the implant internal hex using a titanium fixation screw into the internal thread of the implant.
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, the angular adapter provides excellent mechanical strength, biocompatibility, corrosion resistance, and long-term dimensional stability for implant prosthetic applications.
The component is intended for use in multi-unit prosthetic restorations and is compatible with selected UNIQUE, PRIMA, and PERFECT implant systems.
Key Features
- 17° angular prosthetic correction
- Anti-rotation design with 2.43 mm hexagon
- M3.5 UNF prosthetic connection thread
- Direct connection to implant H2.43 interface
- Precision-machined titanium construction
- Compatible with multi-unit restorative systems
- Designed for implant angulation correction
- Compatible with 1.25 mm hex driver
Available Versions / References
- Implant connection: H2.43 internal hex
- Prosthetic thread: M3.5 UNF
Compatible Implant Systems
- UNIQUE Implant: 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm
- PRIMA Implant: 3.3 mm, 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm
- PERFECT Implant: 4.2 mm, 5.0 mm, 6.0 mm
Technical Specifications
- Diameter: 4.5 mm
- Height: 1.0 mm
- Angulation: 17°
- Internal hex: 2.43 mm
- Prosthetic thread: M3.5 UNF
- Hex connection: 1.25 mm
Material
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, providing:
- High mechanical strength
- Excellent biocompatibility
- Corrosion resistance
- Precision and long-term durability
- Reliability for implant prosthetic restorations
- Clinical / Laboratory Application
- Angled implant-supported restorations
- Multi-unit prosthetic restorations
- Implant angulation correction
- Screw-retained restorative procedures
- Prosthetic rehabilitation on osseointegrated implants
Sterilization
Before clinical use, the product must be sterilized in an autoclave at 135°C / 274°F.
Advantages
- Corrects implant angulation for improved prosthetic alignment
- Stable anti-rotational implant connection
- Reliable multi-unit prosthetic support
- Durable and biocompatible titanium construction
- Compatible with multiple implant systems
- Supports accurate and predictable prosthetic outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Titanium Angular Adapter 17-1 H2.43
Intended Use
The Titanium Angular Adapter is intended for:
- Angled implant-supported prosthetic restorations
- Multi-unit restorative procedures
- Implant angulation correction
- Screw-retained implant prosthetic workflows
Indications
The product is indicated for use with:
- Implants with H2.43 internal hex connection
- Multi-unit prosthetic systems
- UNIQUE Implant systems
- PRIMA Implant systems
- PERFECT Implant systems
- Screw-retained prosthetic restorations
Contraindications
Do not use the product in:
- Patients with known hypersensitivity to titanium alloys
- Clinical situations incompatible with implant-supported restorations
- Cases where the component is damaged, deformed, or worn
Warnings
- Product is supplied non-sterile.
- Sterilization before clinical use is mandatory.
- Use only compatible implant systems, prosthetic components, and fixation screws.
- Improper seating may result in prosthetic misfit or mechanical complications.
- Do not use excessive tightening force.
- Intended for professional dental use only.
Precautions
- Verify compatibility with the implant system before use.
- Inspect the component before clinical application.
- Ensure complete seating of the adapter into the implant connection.
- Use only compatible titanium fixation screws.
- Use only a 1.25 mm hex driver.
- Follow standard implant prosthetic and infection control procedures.
Instructions for Clinical Use
1. Preparation
- Verify implant compatibility and prosthetic treatment plan.
- Clean and dry the implant connection area before placement.
2. Placement of the Angular Adapter
- Position the Titanium Angular Adapter 17-1 H2.43 into the implant internal hex connection.
- Align the anti-rotation hexagon correctly within the implant interface.
- Secure the adapter using the compatible titanium fixation screw.
- Tighten using a 1.25 mm hex driver according to standard prosthetic protocols.
3. Prosthetic Procedure
- Attach the second part of the multi-unit prosthetic system to the M3.5 UNF prosthetic thread.
- Verify prosthetic alignment and passive fit before final restoration fixation.
4. Final Restoration
- Complete the screw-retained restorative procedure according to standard clinical protocols.
- Verify occlusion, prosthetic stability, and final seating.
Cleaning and Sterilization
The product must be cleaned and sterilized before use.
- Sterilization Parameters
- Autoclave sterilization
- Temperature: 135°C / 274°F
Storage
- Store in a clean, dry environment.
- Protect from contamination, moisture, and mechanical damage.
- Avoid exposure to corrosive substances.
