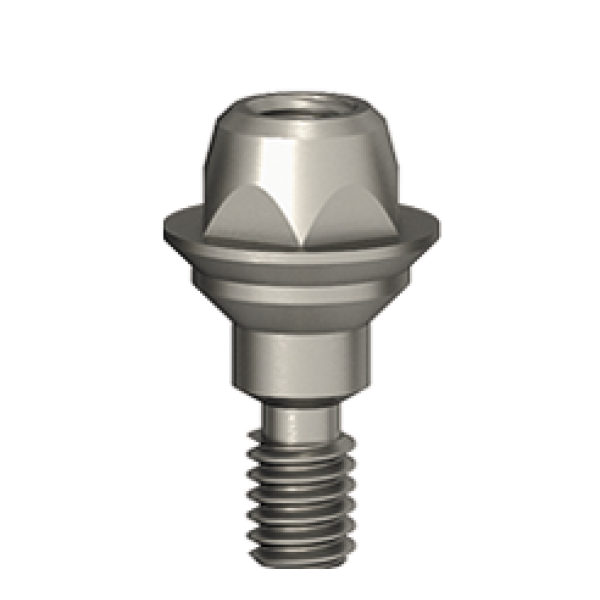

Titanium Esthetic Screw Multi-Unit M2-0.5mm for Implant H2.1–H2.43

Titanium Esthetic Screw Multi-Unit M2-0.5mm for Implant H2.1–H2.43

The Titanium Esthetic Screw Multi-Unit M2-0.5 for Implant H2.1–H2.43 is a precision prosthetic component designed for screw-retained implant restorations on implants with H2.1–H2.43 internal connection.

The component features a straight 0° angulation relative to the implant axis and includes a shoulder design 0.5mm, without an anti-rotation element. The multi-unit abutment is equipped with a 1/72 UNF external prosthetic thread for fixation of permanent prosthetic restorations.

The abutment connects directly to the implant by screwing into the internal implant thread, providing stable prosthetic support and accurate restorative positioning for implant-supported rehabilitation.

Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, the multi-unit abutment provides excellent mechanical strength, bio-compatibility, corrosion resistance, and long-term dimensional stability for implant prosthetic applications.

The component is intended for use with titanium prosthetic screw M2 (Ref. 700229) for fixation of permanent screw-retained restorations.

Key Features

- Straight multi-unit abutment with 0° angulation
- Designed for screw-retained restorations
- Shoulder design without anti-rotation feature
- 1/72 UNF external prosthetic thread
- Direct connection to implant H2.1–H2.43 interface
- Precision-machined titanium construction
- Compatible with titanium prosthetic screw M2 (700229)
- Compatible with 1.77 mm or 1.27 mm hex drivers
- Designed for implant-supported restorative workflows

Available Versions / References

- Titanium prosthetic screw M2: 700229
- Implant connection: H2.1–H2.43 internal connection

Compatible Implant Systems

- UNIQUE Implant: 3.0 mm, 3.3 mm, 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm
- PERFECT Implant: 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm
- PRIMA Implant: 3.3 mm, 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm

Technical Specifications

- Shoulder length: 0.5 mm

- Shoulder diameter: 4.7 mm
- Angulation: 0°
- Prosthetic thread: 1/72 UNF
- Hex connection: 1.77 mm / 1.27 mm

Material

Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, providing:

- High mechanical strength
- Excellent bio-compatibility
- Corrosion resistance
- Precision and long-term durability
- Reliability for implant prosthetic restorations

Clinical / Laboratory Application

- Screw-retained implant restorations
- Multi-unit prosthetic rehabilitation
- Implant-supported permanent restorations
- Prosthetic fixation on osseointegrated implants
- Implant restorative workflows

Sterilization

Before clinical use, the product must be sterilized in an autoclave at 135°C / 274°F.

Advantages

- Stable connection to implant systems H2.1–H2.43
- Reliable support for screw-retained restorations
- Straight prosthetic alignment
- Durable and bio compatible titanium construction
- Compatible with multiple implant platforms
- Supports accurate and predictable prosthetic outcomes
