Product Description

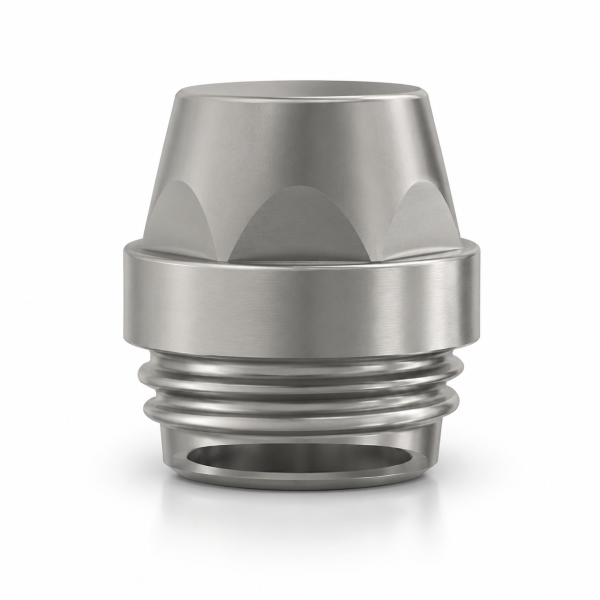

Titanium Esthetic Connector for Angular Adapter
The Titanium Esthetic Connector for Angular Adapter is a precision prosthetic component designed for screw-retained permanent restorations on implant-supported angular adapter systems.
The connector is designed without an anti-rotation feature and includes an M3.5 UNF prosthetic thread with an integrated shoulder design for enhanced prosthetic support and esthetic restoration contours. The component connects directly to the angular adapter by screwing into the internal thread of the adapter.
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, the esthetic connector provides excellent mechanical strength, biocompatibility, corrosion resistance, and long-term dimensional stability for implant prosthetic applications.
The connector is intended for use together with compatible plastic sheaths, titanium bases, and titanium prosthetic screws in screw-retained restorative workflows. It is compatible with all two-piece angular adapter systems.
Key Features
- Designed for screw-retained permanent restorations
- Compatible with angular adapter systems
- Non-anti-rotational design
- M3.5 UNF prosthetic connection thread
- Integrated esthetic shoulder design
- Direct connection to angular adapter
- Precision-machined titanium construction
- Compatible with 1.25 mm hex driver
- Designed for implant-supported prosthetic restorations
Available Versions / References
Prosthetic thread: M3.5 UNF
Compatible components:
- Plastic sheath
- Titanium base
- Titanium prosthetic screw
Compatible Systems
All two-piece angular adapter systems
Technical Specifications
- Diameter: 4.7 mm
- Shoulder height: 0.5 mm
- Prosthetic thread: M3.5 UNF
- Hex connection: 1.25 mm
Material
Manufactured from medical-grade titanium alloy Ti6Al4V ASTM F136, providing:
- High mechanical strength
- Excellent biocompatibility
- Corrosion resistance
- Precision and long-term durability
- Reliability for implant prosthetic restorations
Clinical / Laboratory Application
- Screw-retained implant restorations
- Prosthetic rehabilitation on osseointegrated implants
- Angular adapter restorative workflows
- Implant-supported permanent restorations
- Esthetic prosthetic rehabilitation
Sterilization
Before clinical use, the product must be sterilized in an autoclave at 135°C / 274°F.
Advantages
- Reliable connection to angular adapter systems
- Improved prosthetic support and esthetics
- Durable and biocompatible titanium construction
- Compatible with multiple prosthetic restorative components
- Precision-machined for accurate prosthetic fit
- Supports accurate and predictable restorative outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Titanium Esthetic Connector for Angular Adapter
Intended Use
The Titanium Esthetic Connector is intended for:
- Screw-retained implant-supported restorations
- Prosthetic rehabilitation on osseointegrated implants
- Angular adapter restorative workflows
- Implant-supported permanent restorations
- Esthetic prosthetic rehabilitation
Indications
The product is indicated for use with:
- Two-piece angular adapter systems
- Compatible plastic sheaths
- Compatible titanium bases
- Compatible titanium prosthetic screws
- Screw-retained prosthetic restorations
Contraindications
Do not use the product in:
- Patients with known hypersensitivity to titanium alloys
- Clinical situations incompatible with implant-supported restorations
- Cases where the component is damaged, deformed, or worn
Warnings
- Product is supplied non-sterile.
- Sterilization before clinical use is mandatory.
- Use only compatible prosthetic components and fixation screws.
- Improper seating may result in prosthetic misfit or mechanical complications.
- Do not use excessive tightening force.
- Intended for professional dental use only.
Precautions
- Verify compatibility with the implant system and prosthetic components before use.
- Inspect the component before clinical application.
- Ensure complete seating of the connector into the angular adapter.
- Use only compatible prosthetic restorative components.
- Use only a 1.25 mm hex driver.
- Follow standard implant prosthetic and infection control procedures.
Instructions for Clinical / Laboratory Use
1. Preparation
- Verify compatibility of all prosthetic components before use.
- Clean and inspect all components prior to placement.
2. Placement of the Connector
- Position the Titanium Esthetic Connector into the angular adapter.
- Secure the connector by screwing into the internal thread of the angular adapter.
- Tighten using a 1.25 mm hex driver according to standard prosthetic protocols.
3. Prosthetic Procedure
- Attach compatible prosthetic restorative components including:
- Plastic sheath
- Titanium base
- Titanium prosthetic screw
- Verify passive fit and prosthetic alignment before final restoration fixation.
4. Final Restoration
- Complete the screw-retained restorative procedure according to standard clinical protocols.
- Verify occlusion, prosthetic stability, and final seating.
Cleaning and Sterilization
- Sterilization Parameters
- Autoclave sterilization
- Temperature: 135°C / 274°F
Storage
- Store in a clean, dry environment.
- Protect from contamination, moisture, and mechanical damage.
- Avoid exposure to corrosive substances.
