Osteotomes Set

Osteotomes Set

Product Description

The Osteotomes Set is a reusable implantology instrument kit intended for controlled bone manipulation and implant site preparation during oral surgical and dental implant procedures.

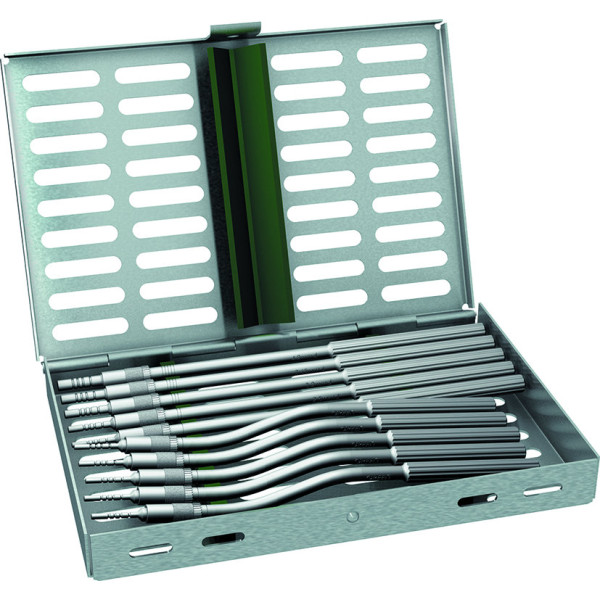

The set includes 5 straight osteotomes and 5 angular osteotomes with cylindrical working tips ranging from 2.0 mm to 4.2 mm in diameter. The instruments are designed for progressive bone expansion, implant osteotomy preparation, sinus lifting procedures, and expansion of narrow alveolar ridges.

Each osteotome is equipped with an adjustable movable stopper allowing controlled penetration depth adjustment from 4 mm to 18 mm, supporting accurate surgical depth management during clinical procedures.

Manufactured from medical-grade stainless steel, the instruments provide excellent dimensional precision, corrosion resistance, mechanical durability, and long-term clinical reliability.

Intended Use

The Osteotomes Set is intended for:

- Implant bone bed preparation
- Sinus lifting procedures
- Expansion of narrow alveolar ridges
- Bone condensation procedures
- Implant osteotomy preparation
- Oral implantology procedures

Indications for Use

The instruments are indicated for use in dental implant surgical procedures requiring controlled bone expansion, sinus elevation, ridge expansion, and implant site preparation.

Contraindications

Do not use the instruments:

- For procedures other than intended dental implant applications
- If the instruments are damaged, bent, worn, or corroded
- Without proper sterilization before clinical use
- In cases where surgical conditions contraindicate osteotome techniques

Warnings

- The instruments must be used only by qualified dental professionals trained in implantology procedures.
- Excessive force may cause bone trauma or instrument damage.
- Inspect all instruments before each use for wear, deformation, or damage.
- Use only according to accepted implant surgical protocols.
- Improper use may compromise implant site preparation and surgical outcomes.

Precautions

- Sterilize all instruments before first use and before each subsequent use.
- Select the appropriate osteotome diameter according to the surgical protocol.
- Use gradual progressive expansion techniques during bone preparation.
- Clean instruments immediately after use to prevent residue accumulation.
- Follow standard implantology and oral surgical procedures.

Directions for Use

1. Clean and sterilize all instruments before use.
2. Select the appropriate straight or angular osteotome according to the clinical situation.
3. Adjust the movable stopper to the desired penetration depth between 4 mm and 18 mm.
4. Position the osteotome at the prepared surgical site.
5. Perform controlled bone expansion or osteotomy preparation according to the implant surgical protocol.
6. Progressively increase osteotome diameter as required during the procedure.
7. After completion of the procedure, clean and sterilize all instruments before reuse.

Cleaning and Disinfection

Immediately after use:

- Remove visible debris and biological contaminants.
- Rinse thoroughly under running water.
- Clean manually or using an ultrasonic cleaner with approved medical instrument detergent.
- Dry instruments completely before sterilization.

Sterilization

- The instruments must be sterilized before use in an autoclave at: 135°C (274°F)
- Sterilization must be performed according to standard dental sterilization procedures and local regulations.

Storage

- Store in a clean, dry environment.
- Protect from moisture and contamination.
- Store in appropriate sterilization packaging until use.
