INSTRUCTION FOR USE
Product Description

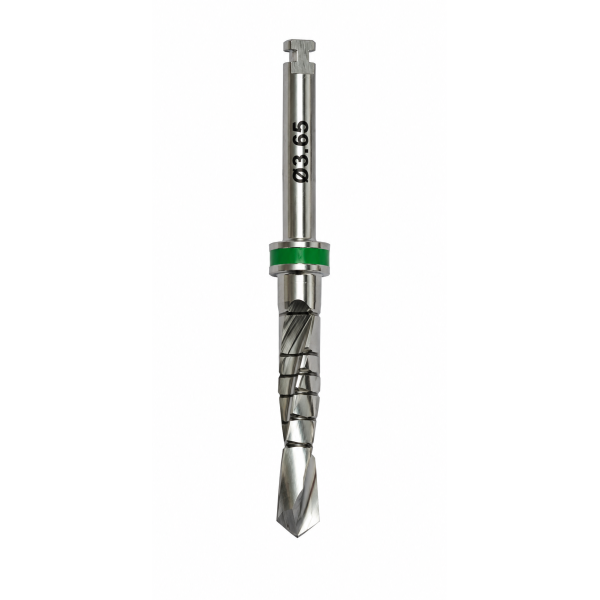

Surgical Drill with External Irrigation
The Surgical Drill with External Irrigation is a precision-engineered instrument designed for bone drilling and implant osteotomy preparation during dental implant surgery. Manufactured from high-quality surgical stainless steel, the drill provides excellent cutting efficiency, durability, and corrosion resistance for reliable clinical performance.
The cylindrical drill is available in diameters ranging from 1.2 mm to 5.3 mm and features an 18 mm working length, making it suitable for sequential implant site preparation protocols. External irrigation channels ensure effective cooling during drilling procedures, helping to reduce heat generation and support optimal bone preservation.
To facilitate precise depth control, the working portion of the drill is laser-marked with depth indicators at 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 11.5 mm, 13 mm, and 16 mm. A color-coded identification system on the non-working portion allows quick and accurate drill diameter selection during surgical procedures.
Designed for use with low-speed surgical contra-angle handpieces at speeds up to 2,000 rpm, the Surgical Drill with External Irrigation provides clinicians with predictable osteotomy preparation and enhanced surgical efficiency.
Advantages
- Precision bone drilling for implant site preparation.
- External irrigation design improves cooling during drilling.
- Manufactured from high-quality surgical stainless steel.
- Available in diameters from 1.2 mm to 5.3 mm.
- 18 mm working length for versatile clinical applications.
- Laser-marked depth indicators for accurate drilling depth control.
- Color-coded diameter identification for quick drill selection.
- High cutting efficiency and long service life.
- Compatible with low-speed surgical contra-angle handpieces.
- Suitable for standard implant osteotomy protocols.
Specifications
- Product Type: Surgical Drill with External Irrigation
- Material: Surgical Stainless Steel
- Drill Diameters: Narrow: 1.2 mm, 1.5 mm
White: 2.0 mm
Yellow: 2.5 mm
Red: 2.8 mm
Blue: 3.2 mm
Green: 3.7 mm
Black: 4.2 mm
Brown: 5.3 mm
- Working Length: 18 mm
- Depth Markings: 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 11.5 mm, 13 mm, 16 mm
- Irrigation Type: External Irrigation
- Maximum Speed: 2,000 rpm
Indications
- Bone drilling procedures.
- Implant osteotomy preparation.
- Sequential implant site enlargement.
- Dental implant surgical protocols.
Sterilization
- The product is supplied non-sterile.
- The drill must be cleaned and sterilized using a validated steam sterilization cycle.
- Autoclave sterilization at 135°C (274°F) is required prior to use.
Storage
Store in a clean, dry environment. Protect from contamination, excessive moisture, and mechanical damage.
Reviews
There are no reviews for this product, be the first to leave your review.
Surgical Drill with External Irrigation
Intended Use
The Surgical Drill with External Irrigation is intended for bone drilling and implant osteotomy preparation during dental implant surgical procedures. The drill is designed to create and enlarge implant sites according to established surgical protocols.
Indications
- Preparation of implant osteotomies.
- Sequential enlargement of implant sites.
- Bone drilling procedures in oral and maxillofacial surgery.
- Use in conjunction with compatible dental implant systems.
Contraindications
Do not use:
- For applications other than intended implant site preparation.
- If the drill is damaged, worn, bent, or shows signs of corrosion.
- In patients with conditions that contraindicate implant surgery.
- Without adequate irrigation during drilling procedures.
Warnings
- The product is intended for use only by qualified dental professionals and oral surgeons.
- Excessive drilling speed or insufficient irrigation may cause overheating of bone tissue.
- Inspect the drill before each use.
- Replace drills showing signs of wear, deformation, or reduced cutting efficiency.
- Follow accepted implant surgical protocols at all times.
Precautions
- Verify drill diameter before use using the color-coded identification ring.
- Use external irrigation throughout the drilling procedure.
- Apply light and controlled pressure during drilling.
- Avoid excessive lateral forces.
- Ensure proper cleaning and sterilization before each use.
- Use only with compatible low-speed surgical contra-angle handpieces.
Instructions for Use
Pre-Operative Procedure
1. Inspect the drill for cleanliness, damage, and wear.
2. Confirm the correct drill diameter according to the surgical protocol.
3. Sterilize the drill prior to use.
4. Mount the drill securely into a compatible low-speed surgical contra-angle handpiece.
Surgical Procedure
1. Begin osteotomy preparation according to the implant manufacturer's drilling sequence.
2. Operate the drill at a maximum speed of 2,000 rpm.
3. Maintain continuous external irrigation throughout drilling.
4. Use depth markings to monitor osteotomy depth.
5. Advance sequentially through the recommended drill diameters until the desired implant site is achieved.
6. Remove bone debris as required during the procedure.
7. Complete implant placement according to the implant system protocol.
Post-Operative Procedure
1. Remove the drill from the handpiece.
2. Thoroughly clean and disinfect the instrument.
3. Inspect for wear or damage.
4. Sterilize before storage or future use.
Cleaning and Sterilization
- Clean the drill immediately after use.
- Remove all biological residues and contaminants.
- Rinse thoroughly with water.
- Sterilize using a validated steam sterilization cycle.
- Recommended Sterilization: Autoclave at 135°C (274°F)
- Do not use the drill if sterility cannot be assured.
Storage
Store in a clean, dry environment away from moisture, contamination, and direct sunlight. Protect the cutting edges from mechanical damage during storage and transportation.
