INSTRUCTION FOR USE
Product Description
Surgical Drills with Integral Stoppers are precision-engineered instruments designed for safe and predictable implant site preparation. Manufactured from high-quality surgical stainless steel, these drills feature a built-in stopper that provides precise depth control during osteotomy preparation, helping to reduce the risk of over-drilling and improving surgical accuracy.
The drills are available in diameters ranging from 2.0 mm to 5.3 mm and working lengths from 5 mm to 16 mm. The integrated stopper corresponds to the selected drilling depth and prevents the drill from penetrating beyond the intended osteotomy length.

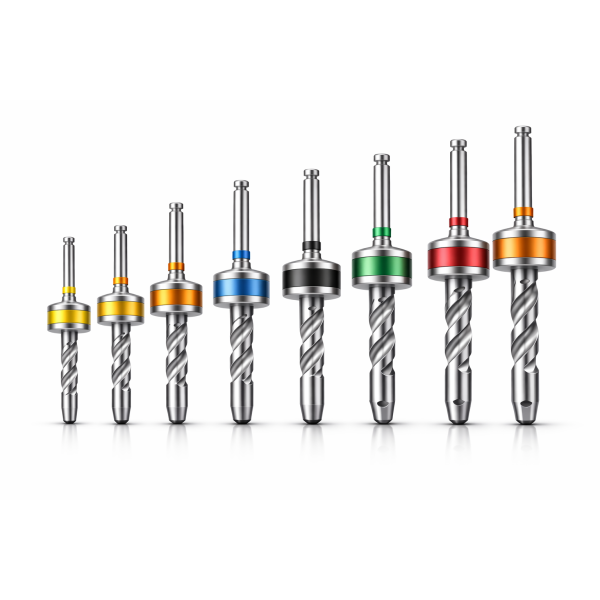

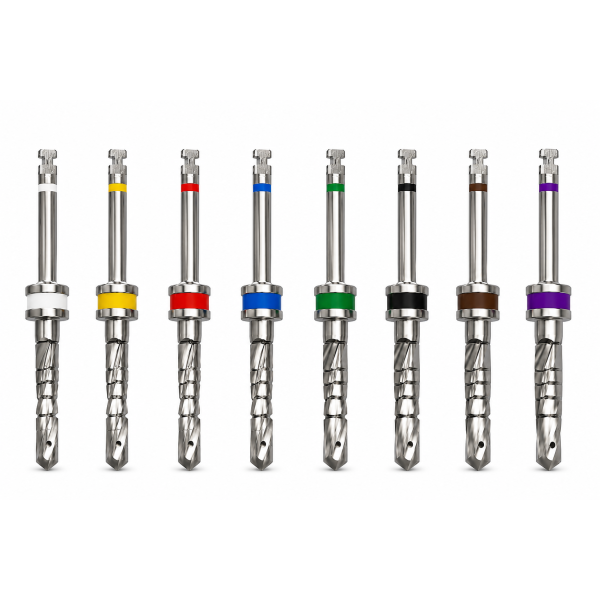

For easy identification, the drills incorporate a dual color-coding system. The lower color ring indicates the drill diameter, while the upper color ring identifies the working length (drilling depth). This intuitive system allows for quick and reliable drill selection during surgical procedures.
Designed for use with external irrigation, the Surgical Drills with Integral Stoppers provide efficient cooling during drilling and help maintain optimal bone conditions throughout implant site preparation. The drills are intended for use with low-speed surgical contra-angle handpieces operating at speeds up to 2,000 rpm.
Advantages
- Built-in stopper provides precise depth control.
- Helps prevent over-drilling and associated surgical complications.
- External irrigation supports efficient cooling during osteotomy preparation.
- Manufactured from high-quality surgical stainless steel.
- Available in multiple diameters and working lengths.
- Dual color-coding system for rapid identification.
- Improves surgical safety and procedural efficiency.
- Compatible with low-speed surgical contra-angle handpieces.
- Suitable for implant site preparation protocols.
Specifications
- Material: Surgical Stainless Steel
- Available Diameters: 2.0 mm, 2.5 mm, 2.8 mm, 3.2 mm, 3.7 mm, 4.2 mm, 5.3 mm
- Available Working Lengths (Stopper Heights): 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 11.5 mm, 13 mm, 16 mm
- Diameter Color Coding (Lower Ring):
White – 2.0 mm
Yellow – 2.5 mm
Red – 2.8 mm
Blue – 3.2 mm
Green – 3.7 mm
Black – 4.2 mm
Brown – 5.3 mm
- Working Length Color Coding (Upper Ring):
White – 5 mm
Yellow – 6 mm
Red – 7 mm
Blue – 8 mm
Green – 10 mm
Black – 11.5 mm
Brown – 13 mm
Purple – 16 mm
Operating Parameters
- Irrigation Type: External Cooling
- Recommended Handpiece: Surgical Contra-Angle
- Maximum Speed: 2,000 rpm
Indications
- Implant osteotomy preparation.
- Controlled-depth bone drilling.
- Sequential implant site enlargement.
- Dental implant surgical procedures requiring precise depth control.
Sterilization
- The product is supplied non-sterile.
- Before each clinical use, the drill must be cleaned and sterilized using a validated steam sterilization cycle.
- Recommended Sterilization: Autoclave at 135°C (274°F)
Storage
Store in a clean, dry environment protected from contamination, moisture, direct sunlight, and mechanical damage.
Reviews
There are no reviews for this product, be the first to leave your review.
Surgical Drills with Integral Stoppers
Intended Use
Surgical Drills with Integral Stoppers are intended for bone drilling and implant osteotomy preparation during dental implant surgery. The integrated stopper provides controlled drilling depth and helps prevent over-preparation of the implant site.
Indications
- Implant osteotomy preparation.
- Controlled-depth bone drilling.
- Sequential enlargement of implant sites.
- Dental implant surgical procedures requiring precise depth control.
Contraindications
Do not use:
- For applications other than implant site preparation.
- If the drill is damaged, worn, bent, or corroded.
- In patients with conditions that contraindicate implant surgery.
- Without adequate irrigation during drilling procedures.
- If the stopper is damaged or shows signs of deformation.
Warnings
- This product is intended for use only by qualified dental professionals and oral surgeons.
- Verify the selected drill diameter and stopper height before use.
- Excessive drilling speed or insufficient irrigation may cause overheating of bone tissue.
- Inspect the drill before each use for wear, damage, or deformation.
- Replace drills showing reduced cutting efficiency or visible damage.
- Do not exceed the recommended rotational speed of 2,000 rpm.
Precautions
- Ensure continuous irrigation during drilling.
- Apply light and controlled pressure throughout the procedure.
- Avoid excessive lateral forces.
- Follow the recommended drilling sequence for the implant system being used.
- Verify the correct working length before beginning osteotomy preparation.
- Use only with compatible low-speed surgical contra-angle handpieces.
Instructions for Use
Pre-Operative Procedure
1. Inspect the drill for cleanliness, wear, and damage.
2. Verify the correct drill diameter using the lower color ring.
3. Verify the desired drilling depth using the upper color ring.
4. Clean and sterilize the drill prior to use.
5. Securely mount the drill into a compatible low-speed surgical contra-angle handpiece.
6. Ensure adequate irrigation is available before beginning the procedure.
Surgical Procedure
1. Begin osteotomy preparation according to the implant manufacturer's drilling protocol.
2. Operate the drill at a maximum speed of 2,000 rpm.
3. Maintain continuous external irrigation throughout drilling.
4. Advance the drill with gentle pressure.
5. Continue drilling until the integrated stopper contacts the cortical bone surface.
6. Do not force the drill beyond the stopper.
7. Progress through the recommended drill sequence until the desired implant site dimensions are achieved.
8. Complete implant placement according to the implant system protocol.
Post-Operative Procedure
1. Remove the drill from the handpiece.
2. Thoroughly clean the drill and remove all biological debris.
3. Inspect cutting edges and stopper surfaces for wear or damage.
4. Sterilize the drill before storage or future use.
Cleaning and Sterilization
- The product is supplied non-sterile.
- Clean the drill thoroughly.
- Remove all blood, bone particles, tissue residues, and contaminants.
- Rinse thoroughly with water.
- Sterilize using a validated steam sterilization cycle.
- Recommended Sterilization: Autoclave at 135°C (274°F)
- Do not use the instrument if sterility cannot be assured.
Storage
Store in a clean, dry environment protected from contamination, moisture, direct sunlight, and mechanical damage. Protect the cutting surfaces and stopper from damage during storage and transportation.
