Product Description

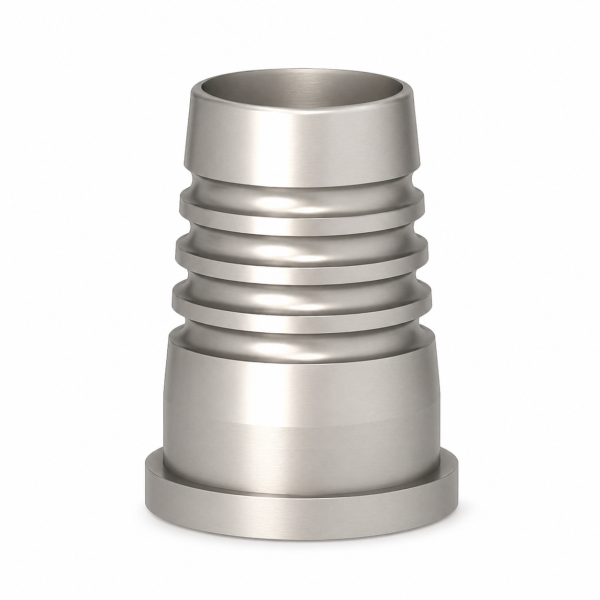

The Titanium Base Round for Standard Connector is a precision prosthetic component designed for the fabrication and fixation of custom screw-retained zirconia restorations on dental implants. The titanium base serves as a durable interface between the implant-supported prosthetic restoration and the Standard Connector Abutment, providing excellent stability, precision fit, and long-term clinical reliability.
Manufactured from high-quality Ti6Al4V medical titanium alloy ASTM F136, the titanium base offers exceptional biocompatibility, mechanical strength, corrosion resistance, and predictable prosthetic performance.
The component is specifically designed for custom zirconia bridge restorations and provides a stable platform for laboratory fabrication of implant-supported prostheses. The round design allows flexibility during restorative planning and supports both conventional and CAD/CAM manufacturing workflows.
The titanium base is supplied in a straight configuration without an anti-rotation element and is intended for use with screw-retained permanent restorations on fully osseointegrated implants.
The component connects directly to the Standard Connector Abutment Ø4.0 mm (604040, etc.) and is secured using a Titanium Prosthetic Screw (700229). Installation and restoration fixation are performed using a 1.25 mm hex driver.
Suitable for:
- Custom zirconia bridge restorations
- Screw-retained restorations
- Permanent implant restorations
- Implant-supported bridges
- Full-arch restorations
- CAD/CAM restorative workflows
- Implant prosthetic rehabilitation
- Oral implantology applications
Specifications
- Product type: Titanium base round for standard connector
- Diameter: 4.0 mm
- Shoulder height: 0.5 mm
- Base height: 6.0 mm
- Design: Straight
- Anti-rotation feature: None
- Material: Ti6Al4V medical titanium alloy ASTM F136
- Restoration type: Screw-retained permanent restorations
- Driver compatibility: 1.25 mm hex key
- Fixation screw: Titanium Screw (700229)
- Sterilization: Fully autoclavable
Compatible Components
- Standard Connector Abutment Ø4.0 mm (604040, etc.)
- Titanium Prosthetic Screw (700229)
- 1.25 mm Hex Driver
- Custom Zirconia Bridge Restorations
Indications for Use
Intended for use in the fabrication and fixation of implant-supported restorations during:
- Custom zirconia bridge fabrication
- Screw-retained restorations
- Full-arch rehabilitations
- Implant-supported bridges
- Permanent prosthetic restorations
- Implant restorative procedures
Sterilization
The component must be sterilized before use in an autoclave at: 135°C (274°F)
Advantages
- Designed for custom zirconia bridge restorations
- Precision connection to standard connector abutments
- Suitable for screw-retained permanent restorations
- Straight prosthetic design
- Compatible with CAD/CAM and conventional workflows
- High-strength Ti6Al4V ASTM F136 titanium construction
- Excellent biocompatibility
- Outstanding corrosion resistance
- Reliable prosthetic stability and retention
- Precision-machined prosthetic interface
- Compatible with standard connector systems
- Fully autoclavable
- Designed for predictable long-term implant prosthetic outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Titanium Base Round for Standard Connector
Intended Use
The Titanium Base Round for Standard Connector is intended for the fabrication and fixation of custom screw-retained zirconia restorations on dental implants. The component serves as a prosthetic interface between the restoration and the Standard Connector Abutment, providing a stable and durable foundation for long-term implant-supported prosthetic rehabilitation.
The titanium base is designed for permanent restorations on fully osseointegrated implants and is suitable for custom zirconia bridges, implant-supported bridges, and full-arch restorations.
Indications
The Titanium Base Round for Standard Connector is indicated for:
- Custom zirconia bridge restorations
- Screw-retained restorations
- Implant-supported bridges
- Full-arch restorations
- Permanent implant restorations
- CAD/CAM restorations
- Implant rehabilitation procedures
Compatible Components
- Standard Connector Abutment Ø4.0 mm (604040, etc.)
- Titanium Prosthetic Screw (700229)
- 1.25 mm Hex Driver
- Custom Zirconia Restorations
Product Specifications
- Diameter: 4.0 mm
- Shoulder Height: 0.5 mm
- Base Height: 6.0 mm
- Design: Straight
- Anti-Rotation Feature: None
- Material: Ti6Al4V Medical Titanium Alloy ASTM F136
Laboratory Procedure
Restoration Fabrication
1. Verify compatibility of the Titanium Base with the Standard Connector Abutment (604040, etc.).
2. Inspect the component for damage or contamination.
3. Design the custom zirconia restoration according to the treatment plan.
4. Fabricate the restoration using conventional laboratory techniques or CAD/CAM technology.
5. Bond or secure the zirconia restoration to the titanium base according to the manufacturer's recommended protocol.
6. Verify passive fit and proper prosthetic alignment.
Clinical Procedure
Titanium Base Installation
1. Confirm successful osseointegration of the implant.
2. Verify that the Standard Connector Abutment (604040, etc.) is properly installed and secured.
3. Position the completed restoration containing the Titanium Base onto the Standard Connector Abutment.
4. Verify complete seating and passive fit.
Restoration Fixation
1. Insert the Titanium Prosthetic Screw (700229).
2. Tighten the screw using a compatible 1.25 mm hex driver.
3. Apply the torque recommended by the implant system and restorative protocol.
4. Verify stability and complete seating of the restoration.
5. Check occlusion and adjust if necessary.
6. Seal the screw access channel according to standard restorative procedures.
Final Restoration Verification
Before completion of treatment:
1. Verify passive fit of the restoration.
2. Confirm complete seating of the titanium base.
3. Check restoration stability.
4. Verify proper occlusal contacts.
5. Confirm esthetics and soft tissue adaptation.
Removal Procedure
1. Remove the restorative material covering the screw access channel.
2. Loosen the Titanium Prosthetic Screw (700229) using a 1.25 mm hex driver.
3. Remove the restoration.
4. Inspect the titanium base and associated components before reuse or replacement.
Cleaning and Sterilization
- Remove all manufacturing residues and contaminants.
- Clean using approved medical device cleaning procedures.
- Rinse thoroughly with distilled or deionized water.
- Dry completely before sterilization.
- Sterilize before use in a steam autoclave: Temperature: 135°C (274°F)
- Follow validated sterilization procedures and local regulatory requirements.
Warnings and Precautions
- For professional dental use only.
- Use only with compatible Standard Connector Abutments (604040, etc.).
- Use only with Titanium Prosthetic Screw (700229).
- Verify complete seating before final tightening.
- Follow recommended torque values.
- Do not use damaged or deformed components.
- Components showing signs of wear, deformation, or damage must be replaced.
- Ensure passive fit of the restoration before final fixation.
Storage
Store in a clean, dry environment protected from contamination, moisture, and mechanical damage.
