Product Description

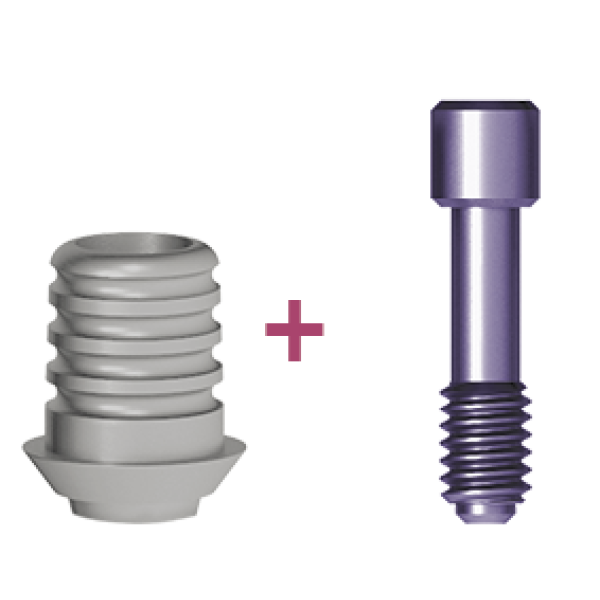

The Titanium Base Round for Short Implant H2.43 is a precision prosthetic component designed for the fabrication and fixation of custom screw-retained zirconia bridge restorations on short dental implants. The titanium base provides a stable and durable connection between the implant and the prosthetic restoration, ensuring excellent mechanical stability and long-term clinical performance.
Manufactured from high-quality Ti6Al4V medical titanium alloy ASTM F136, the titanium base offers exceptional biocompatibility, corrosion resistance, mechanical strength, and predictable restorative outcomes.
The component is specifically designed for use in multi-unit bridge restorations supported by two or more osseointegrated short implants. The titanium base serves as a prosthetic platform for custom zirconia bridge fabrication and supports both conventional and CAD/CAM restorative workflows.
The titanium base is supplied in a straight configuration with a shoulder and is manufactured without an anti-rotation element between the titanium base and the implant, as well as without an anti-rotation element between the titanium base and the prosthetic restoration.
The component connects directly to compatible H2.43 implant systems and is secured using Titanium Prosthetic Screw (701207).
Suitable for:
- Screw-retained bridge restorations
- Custom zirconia bridge restorations
- Full-arch restorations
- Multi-unit restorations
- Implant-supported bridges
- Short implant restorations
- Permanent implant restorations
- CAD/CAM restorative workflows
- Oral implantology applications
Specifications
- Product type: Titanium base round for short implant
- Implant connection: H2.43 Internal Hex
- Shoulder diameter: 4.5 mm
- Body height: 4.0 mm
- Design: Straight with shoulder
- Anti-rotation feature: None
- Material: Ti6Al4V medical titanium alloy ASTM F136
- Fixation screw: Titanium Screw (701207)
- Restoration type: Screw-retained permanent restorations
- Sterilization: Fully autoclavable

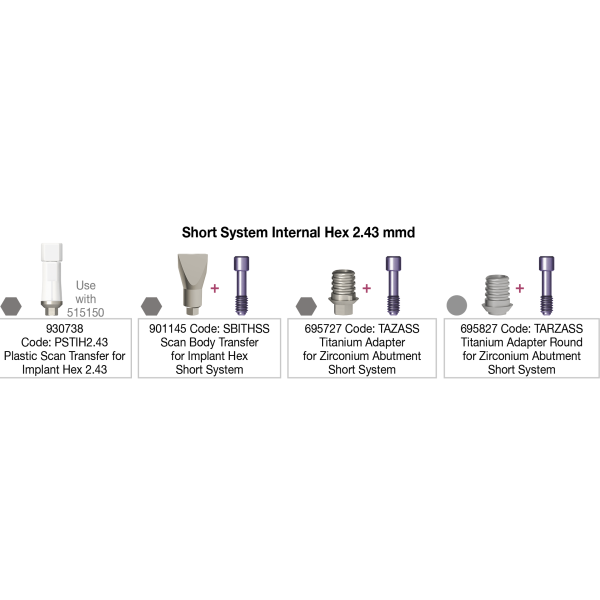

Compatible Implant Systems
- UNIQUE Short Implants Diameters: Ø3.75 mm, Ø4.2 mm, Ø5.0 mm, Ø6.0 mm and Lengths: 5 mm, 6 mm, 7 mm.
- PRIMA Short Implants Diameters: Ø3.3 mm, Ø3.75 mm, Ø4.2 mm, Ø5.0 mm, Ø6.0 mm and Lengths: 5 mm, 6 mm, 7 mm.
Compatible Components
- Titanium Prosthetic Screw (701207)
- H2.43 Implant System
- Custom Zirconia Bridge Restorations
- Screw-Retained Prosthetic Restorations
Indications for Use
Intended for use in the fabrication and fixation of implant-supported restorations during:
- Multi-unit bridge restorations
- Full-arch rehabilitations
- Screw-retained restorations
- Custom zirconia bridge fabrication
- Short implant restorations
- Permanent prosthetic restorations
- Implant restorative procedures
Sterilization
The component must be sterilized before use in an autoclave at: 135°C (274°F)
Advantages
- Designed specifically for short implant restorations
- Suitable for custom zirconia bridge fabrication
- Direct connection to H2.43 implant systems
- Ideal for multi-unit and full-arch restorations
- Straight design with prosthetic shoulder
- Compatible with CAD/CAM and conventional workflows
- High-strength Ti6Al4V ASTM F136 titanium construction
- Excellent biocompatibility
- Outstanding corrosion resistance
- Reliable prosthetic stability and retention
- Precision-machined restorative interface
- Fully autoclavable
- Designed for predictable long-term implant prosthetic outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Titanium Base Round for Short Implant H2.43
Intended Use
The Titanium Base Round for Short Implant H2.43 is intended for the fabrication and fixation of custom screw-retained zirconia bridge restorations on compatible H2.43 short implants. The component serves as a prosthetic interface between the implant and the definitive restoration, providing stable support for long-term implant-supported prosthetic rehabilitation.
The titanium base is designed for permanent restorations supported by two or more osseointegrated implants and is suitable for bridge restorations, full-arch restorations, and other screw-retained prosthetic applications.
Indications
The Titanium Base Round for Short Implant H2.43 is indicated for:
- Screw-retained bridge restorations
- Custom zirconia bridge restorations
- Full-arch restorations
- Multi-unit restorations
- Implant-supported bridges
- Short implant restorations
- Permanent prosthetic restorations
- CAD/CAM restorations
Compatible Implant Systems
- UNIQUE Short Implants Diameters: Ø3.75 mm, Ø4.2 mm, Ø5.0 mm, Ø6.0 mm and Lengths: 5 mm, 6 mm, 7 mm.
- PRIMA Short Implants Diameters: Ø3.3 mm, Ø3.75 mm, Ø4.2 mm, Ø5.0 mm, Ø6.0 mm and Lengths: 5 mm, 6 mm, 7 mm.
Compatible Components
- Titanium Prosthetic Screw (701207)
- H2.43 Implant Connection
- Custom Zirconia Bridge Restorations
- Product Specifications
- Implant Connection: H2.43
- Shoulder Diameter: 4.5 mm
- Body Height: 4.0 mm
- Design: Straight with Shoulder
- Anti-Rotation Feature: None
- Material: Ti6Al4V Medical Titanium Alloy ASTM F136
Laboratory Procedure
Restoration Fabrication
1. Verify compatibility of the Titanium Base with the H2.43 implant platform.
2. Inspect the component for cleanliness and integrity.
3. Design the custom zirconia bridge according to the treatment plan.
4. Fabricate the restoration using conventional laboratory techniques or CAD/CAM technology.
5. Bond or secure the zirconia restoration to the titanium base according to the selected restorative protocol.
6. Verify passive fit and proper prosthetic alignment before delivery.
Clinical Procedure
Titanium Base Installation
1. Confirm successful osseointegration of all supporting implants.
2. Clean and inspect the implant connection.
3. Position the Titanium Base Round onto the H2.43 implant platform.
4. Verify complete seating of the titanium base.
Restoration Fixation
1. Seat the completed zirconia bridge restoration.
2. Insert the Titanium Screw (701207).
3. Tighten the screw according to the implant system manufacturer's recommended torque values.
4. Verify complete seating and stability of the restoration.
5. Check occlusion and adjust if required.
6. Seal the screw access channel according to the restorative protocol.
Final Restoration Verification
Before completion of treatment:
1. Verify passive fit of the bridge restoration.
2. Confirm complete seating of all titanium bases.
3. Check restoration stability.
4. Verify proper occlusal contacts.
5. Confirm esthetics and soft tissue adaptation.
Removal Procedure
1. Remove restorative material from the screw access channel.
2. Loosen the Titanium Screw (701207) using the appropriate driver.
3. Remove the restoration carefully.
4. Inspect the titanium base and associated components before reuse or replacement.
Cleaning and Sterilization
- Remove all contaminants and manufacturing residues.
- Clean using approved medical device cleaning procedures.
- Rinse thoroughly with distilled or deionized water.
- Dry completely before sterilization.
- Sterilize before use in a steam autoclave: Temperature: 135°C (274°F)
- Follow validated sterilization procedures and local regulatory requirements.
Warnings and Precautions
- For professional dental use only.
- Use only with compatible H2.43 implant systems.
- Use only with Titanium Screw (701207).
- Verify complete seating before final tightening.
- Follow recommended torque values.
- Do not use damaged or deformed components.
- Components showing signs of wear, deformation, or damage must be replaced.
- Ensure passive fit of the restoration before final fixation.
Storage
Store in a clean, dry environment protected from contamination, moisture, and mechanical damage.
