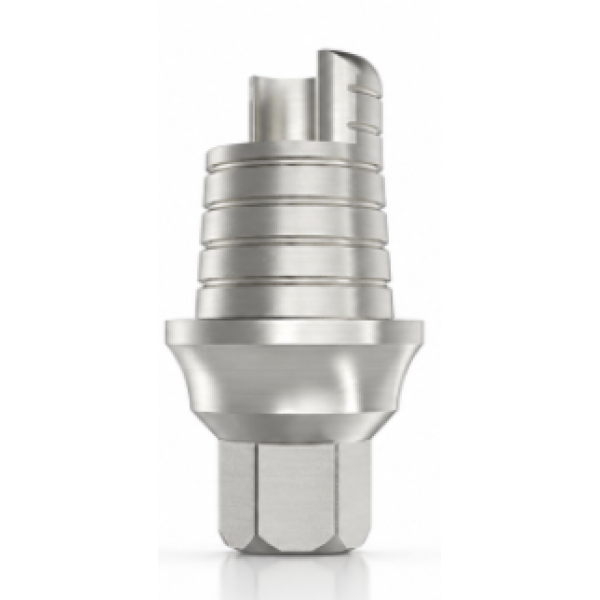

Angular Titanium Base 1.5mm for Implant Internal Hex H2.43

Angular Titanium Base 1.5mm for Implant Internal Hex H2.43
The Titanium Base for Internal Hex H2.43 is a precision-engineered prosthetic component designed for screw-retained and cemented permanent restorations on osseointegrated implants. It serves as a reliable foundation for the fabrication of customized zirconia abutments or crowns, ensuring stability, accuracy, and long-term performance.

Manufactured from high-quality medical-grade titanium alloy Ti6Al4V ASTM F136, the titanium base provides excellent strength, bio compatibility, and corrosion resistance in demanding clinical environments.

Key Features

- Designed for customized zirconia abutments and crowns
- Suitable for screw-retained and cemented restorations
- Shoulder heights: 1.5 mm,
Anti-rotation design:

- Prevents rotation relative to the implant
- Prevents rotation relative to the prosthetic structure
- Precision fit for Internal Hex H2.43 connection
- Durable titanium alloy construction

Indications & Applications

The Titanium Base is intended for:

- Permanent implant-supported restorations
- Fabrication of customized zirconia abutments
- CAD/CAM prosthetic workflows
- Screw-retained and cemented crown restorations

Clinical Benefits

- High stability and anti-rotation security
- Accurate prosthetic fit and alignment
- Reliable long-term performance
- Compatible with digital and conventional workflows

Specifications

- Connection: Internal Hex H2.43
- Shoulder diameter: 4.5 mm
- Body height: 3.0 – 4.5 mm
- Shoulder height options: 1.5 mm
- Thread: 1-72 UNF
- Fixation screw: 701203
- Material: Titanium alloy Ti6Al4V ASTM F136

Compatibility

Compatible with DMI's Implants:

- UNIQUE Implants: Ø 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm, 8.0 mm
- PERFECT Implants: Ø 4.2 mm, 5.0 mm, 6.0 mm
- PRIMA Implants: Ø 3.3 mm, 3.75 mm, 4.2 mm, 5.0 mm, 6.0 mm

Also the system is compatible with surgical tools and prosthetic components designed for:

- 2.43 mm internal hex connection
- 1-72 UNF internal thread

Comparable with systems such as: Zimmer, MIS, Alpha Bio, BioHorizons, Cortex, and others


Handling & Sterilization

- Supplied non-sterile
- Must be sterilized before use
- Autoclave sterilization at 135°C (274°F)

Advantages

- High precision and dimensional stability
- Strong anti-rotation mechanism
- Excellent compatibility with zirconia restorations
- Optimized for both digital and conventional prosthetic workflows
