Product Description

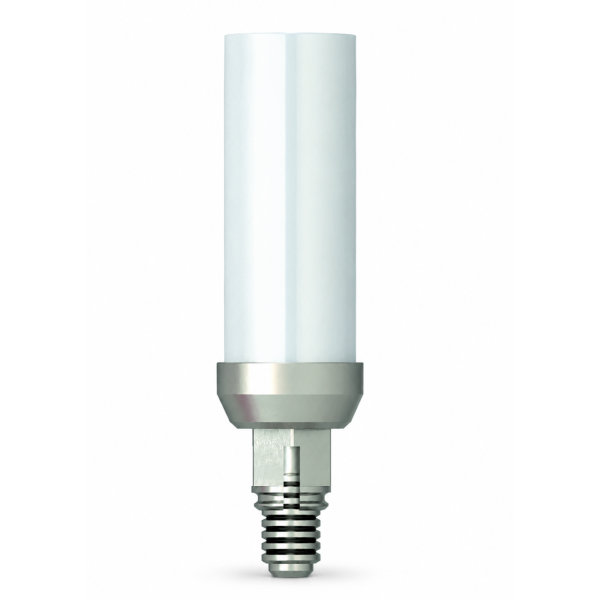

The Plastic Abutment Titanium Base for Implant H2.43 is a castable prosthetic component designed for the fabrication of custom cement-retained and screw-retained implant restorations. Combining a precision-machined titanium base with a castable plastic sheath, this two-piece abutment provides an ideal solution for creating highly customized implant-supported prostheses while maintaining a precise and stable implant connection.
The component consists of a titanium hex base with a 2.43 mm connection and an integrated anti-rotation element, manufactured from medical-grade Ti6Al4V titanium alloy in accordance with ASTM F136 standards. The castable plastic sheath is manufactured from high-quality Delrin® (acetal resin) and is designed for conventional laboratory casting procedures.
With a diameter of 4.5 mm and a height of 10 mm, the Plastic Abutment Titanium Base for Implant H2.43 enables dental laboratories to fabricate patient-specific restorations while preserving the accuracy and strength of the titanium implant interface.
The abutment is intended for use with titanium fixation screw 701203 and is designed exclusively for professional dental laboratory applications.
Key Features
- Designed for cement-retained and screw-retained restorations
- Two-piece titanium base and castable plastic sheath design
- Precision H2.43 mm hex connection
- Integrated anti-rotation element
- Diameter: 4.5 mm
- Height: 10 mm
- Titanium base manufactured from Ti6Al4V ASTM F136
- Plastic sheath manufactured from Delrin® (acetal resin)
- Compatible with titanium fixation screw 701203
- Suitable for conventional casting procedures
- Intended for professional dental laboratory use
Advantages
- Combines the strength and precision of titanium with the flexibility of a castable plastic sleeve
- Anti-rotation design enhances positional accuracy and stability
- Supports the fabrication of highly customized implant-supported restorations
- Suitable for both cement-retained and screw-retained prosthetic solutions
- Provides a precise implant connection for predictable restorative outcomes
- Facilitates the creation of customized emergence profiles and restoration contours
- Excellent laboratory handling and processing characteristics
- Cost-effective solution for individualized prosthetic fabrication
- Compatible with multiple implant platforms, reducing inventory complexity
- Designed specifically for professional dental laboratory workflows
Compatible Implant Systems
- UNIQUE Implants Diameters: Ø3.75 mm, Ø4.2 mm, Ø5.0 mm, Ø6.0 mm
- PERFECT Implants Diameters: Ø4.2 mm, Ø5.0 mm, Ø6.0 mm
- PRIMA Implants Diameters: Ø3.3 mm, Ø3.75 mm, Ø4.2 mm, Ø5.0 mm, Ø6.0 mm
Sterilization
The product is supplied non-sterile and is intended for dental laboratory use only.
The plastic sheath serves as a pattern for the fabrication of a custom cast abutment and is not intended for permanent intraoral use. All definitive prosthetic components and restorations fabricated using this product must be cleaned and sterilized according to validated clinical and laboratory protocols before placement in the patient's mouth.
Applications
The Plastic Abutment Titanium Base for Implant H2.43 is used for the fabrication of custom implant-supported restorations. Its titanium base ensures a precise implant interface, while the castable plastic sheath provides the flexibility required to create individualized prosthetic solutions tailored to specific clinical, functional, and aesthetic requirements.
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Plastic Abutment Titanium Base for Implant H2.43
Intended Use
The Plastic Abutment Titanium Base for Implant H2.43 is intended for the fabrication of custom implant-supported cement-retained and screw-retained restorations through casting procedures performed in a dental laboratory.
Contraindications
Do not use:
- With implant systems not listed in these instructions.
- If the component is damaged, deformed, or contaminated.
- As a definitive intraoral prosthetic component before fabrication of the final restoration.
- If any component of the assembly is missing or damaged.
Warnings
- This product is intended for use only by qualified dental professionals and dental laboratories.
- The plastic sheath is intended solely for laboratory fabrication procedures.
- Use only original compatible components and fixation screws.
- Improper casting or fabrication procedures may compromise the fit, function, and longevity of the final restoration.
- Do not modify or damage the titanium implant connection interface or anti-rotation feature.
Precautions
- Verify compatibility before use.
- Inspect all components before use.
- Ensure proper seating of the plastic sheath onto the titanium base before fabrication procedures.
- Follow standard laboratory procedures for waxing, investing, and casting.
- Avoid damage to the implant connection geometry during laboratory procedures.
- Maintain traceability of the product lot number in patient records.
Instructions for Use
Laboratory Procedure
1. Verify compatibility of the abutment with the selected implant system.
2. Assemble the plastic sheath onto the titanium base.
3. Attach the assembled abutment to the implant analog or implant using titanium screw 701203.
4. Verify complete seating and proper engagement of the anti-rotation feature.
5. Modify the plastic sheath as required to achieve the desired restoration design.
6. Complete waxing, investing, and casting procedures according to standard laboratory protocols.
7. Finish and polish the fabricated custom abutment.
8. Inspect the final restoration for fit, accuracy, and structural integrity before clinical use.
Clinical Procedure
1. Verify the fit of the fabricated custom abutment and restoration.
2. Connect the definitive abutment to the implant according to the implant system protocol.
3. Seat the restoration and verify occlusion, stability, and soft tissue adaptation.
4. For cement-retained restorations, remove all excess cement.
5. For screw-retained restorations, tighten the fixation screw according to the implant manufacturer's recommended torque values.
6. Perform routine follow-up examinations according to accepted clinical protocols.
Sterilization
The product is supplied non-sterile.
The Plastic Abutment Titanium Base for Implant H2.43 is intended for laboratory use only. The plastic sheath serves as a pattern for the fabrication of a custom cast abutment and is not intended for permanent intraoral use.
All definitive prosthetic components and restorations fabricated using this product must be cleaned and sterilized according to validated clinical and laboratory protocols before placement in the patient's mouth.
Storage
Store in a clean, dry environment in the original packaging. Protect from contamination, excessive heat, direct sunlight, and mechanical damage.
