Product Description

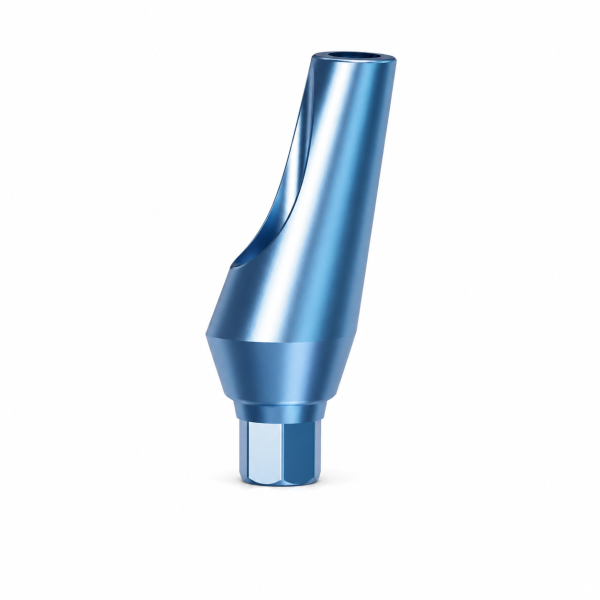

Angular Titanium Abutment 15° for Implant H2.1
The Angular Titanium Abutment 15° for Implant H2.1 is a precision-engineered prosthetic component designed for cement-retained restorations in dental implantology. The 15° angulation allows for effective correction of implant positioning, ensuring optimal prosthetic alignment and improved aesthetic outcomes.
The abutment is designed for implants with an internal hexagon connection (2.1 mm) and 1-72 UNF internal thread, providing a secure and stable interface between the implant and prosthetic restoration. An integrated anti-rotation element enhances fixation stability and minimizes micro-movement.
Key Features
- Angulation: 15° for prosthetic correction
- Connection: Internal hexagon 2.1 mm (H2.1)
- Thread: 1-72 UNF internal thread
- Available diameters: 3.8 mmd, 4.5 mmd
- Available heights: 8 mm, 12 mm
- Designed for cement-retained restorations
- Precise fit for reliable and stable performance
Material
Manufactured from medical-grade titanium alloy (Ti-6Al-4V, ASTM F136), ensuring:
- Excellent biocompatibility
- High mechanical strength
- Corrosion resistance
Compatibility
Direct connection to implant H2.1 using screw 701202.
Used With
UNIQUE Implants
Diameters: 3.0 mmd, 3.3 mmd
PERFECT Implants
Diameter: 3.75 mmd
Clinical Application
- Cement-retained prosthetic restorations
- Correction of implant angulation (15°)
- Aesthetic and functional rehabilitation
- Suitable for narrow implant systems
Sterilization & Handling
- Supplied non-sterile
- Must be sterilized before use in an autoclave at 135°C (274°F)
- Intended for professional dental use only
Advantages
- Angled design for improved prosthetic positioning
- Multiple heights (8 mm, 12 mm) for clinical flexibility
- Available in two diameters (3.8 mmd, 4.5 mmd)
- Secure internal hex connection with anti-rotation stability
- High precision and long-term reliability
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Angular Titanium Abutment 15° for Implant H2.1 (Ø 3.8 / 4.5, H 8 / 12 mm)
Intended Use
The Angular Titanium Abutment 15° H2.1 is intended for use as a prosthetic component in dental implantology to support cement-retained restorations. It allows correction of implant angulation and ensures proper positioning of the prosthetic structure on narrow platform implants.
Indications
- Cement-retained restorations
- Correction of implant angulation (15°)
- Aesthetic and functional prosthetic rehabilitation
- Use with narrow platform implants (H2.1)
- Clinical cases requiring height and diameter variation
Contraindications
- Do not use in patients with known hypersensitivity to titanium
- Do not use in cases of insufficient implant stability
- Not intended for removable prosthetic restorations
Product Specifications
- Connection: Internal hexagon 2.1 mm (H2.1)
- Thread: 1-72 UNF internal thread
- Angulation: 15°
- Diameters: 3.8 mmd, 4.5 mmd
- Heights: 8 mm, 12 mm
- Material: Ti6Al4V ASTM-136 titanium alloy
Product Compatibility
- Direct connection to implants with internal hex H2.1
- Fixation using abutment screw 701202
Used With
UNIQUE Implants
Diameters: 3.0 mmd, 3.3 mmd
PERFECT Implants
Diameter: 3.75 mmd
Preparation Before Use
- Supplied non-sterile
- Sterilize before use in an autoclave at 135°C (274°F)
- Inspect the abutment and screw (701202) for damage or contamination
- Verify compatibility with the implant system
Clinical Procedure
- Ensure the implant is fully osseointegrated
- Select the appropriate abutment size (diameter and height) based on clinical requirements
- Place the abutment into the implant connection (H2.1)
- Align the anti-rotation element correctly
- Ensure complete seating of the abutment
- Fix the abutment using screw 701202
- Tighten according to recommended clinical torque guidelines
- Verify correct positioning and stability
- Proceed with cement-retained prosthetic restoration
Post-Placement Care
- Check abutment stability before prosthetic placement
- Remove excess cement to prevent peri-implant complications
- Follow standard post-operative protocols
Warnings & Precautions
- For professional dental use only
- Use only with compatible implant systems (H2.1)
- Do not reuse if damaged or contaminated
- Avoid excessive torque during tightening
- Ensure proper seating to prevent micro-movement
- Follow standard surgical and prosthetic protocols
Storage
- Store in a clean, dry environment
- Avoid contamination prior to sterilization
