Product Description

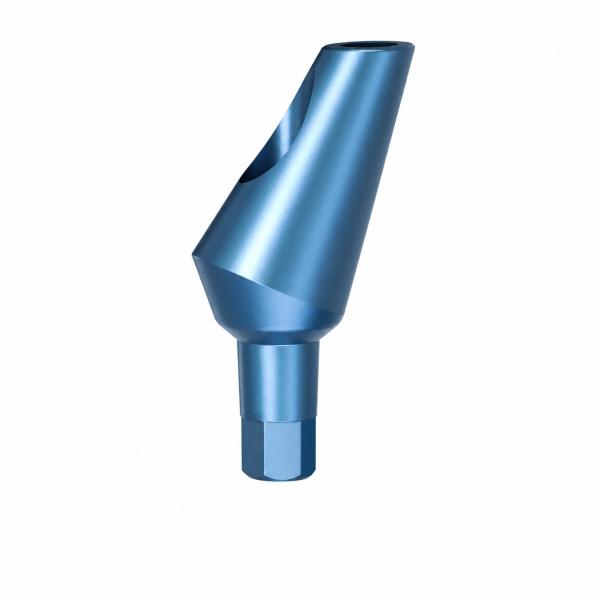

Angular Titanium Abutment for Conical Implant CH2.1 (15° & 25°)
The Angular Titanium Abutments for Conical Implant CH2.1 are precision-engineered prosthetic components designed for cement-retained restorations in dental implantology. Available in 15° and 25° angulations, these abutments provide effective correction of implant positioning, ensuring optimal prosthetic alignment and improved aesthetic outcomes in complex clinical cases.
Each abutment features a conical connection combined with a hexagon (CH 2.1) and an integrated anti-rotation element, delivering a secure, stable, and precise interface between the implant and prosthetic restoration.
Available Configurations
Angular Abutment CH 2.1 – 15°
Length: 11 mm
Diameter: 4.5 mm
Angular Abutment CH 2.1 – 25°
Length: 11 mm
Diameter: 4.7 mm
Key Features
- Available in 15° and 25° angles for prosthetic correction
- Conical connection + hexagon CH 2.1
- Integrated anti-rotation element
- Designed for cement-retained restorations
- High precision fit for long-term stability
Material
Manufactured from medical-grade titanium alloy (Ti-6Al-4V, ASTM F136), ensuring:
- Excellent biocompatibility
- High mechanical strength
- Superior corrosion resistance
Compatibility
Direct connection to implants with internal conical connection CH2.1 using screw 701202.
Used With
Unique Modular Implants (UMI)
Diameters: 3.3 mmd, 3.75 mmd
Perfect Modular Implants (PMI)
Diameters: 3.3 mmd, 3.75 mmd, 4.2 mmd
Clinical Application
- Cement-retained prosthetic restorations
- Correction of implant angulation (15° / 25°)
- Aesthetic and functional rehabilitation
- Use in narrow platform implant cases
Sterilization & Handling
- Supplied non-sterile
- Must be sterilized before use in an autoclave at 135°C (274°F)
- Intended for professional dental use only
Advantages
- Conical connection for enhanced stability and sealing
- Angled design for improved prosthetic positioning
- Anti-rotation feature for secure fixation
- High precision and durability
- Optimized for narrow implant systems
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Angular Titanium Abutment for Conical Implant CH2.1 (15° & 25°)
Intended Use
The Angular Titanium Abutment CH2.1 (15° & 25°) is intended for use as a prosthetic component in dental implantology to support cement-retained restorations. It enables correction of implant angulation and ensures proper positioning of the prosthetic structure on narrow platform implants.
Indications
- Cement-retained restorations
- Correction of implant angulation (15° and 25°)
- Aesthetic and functional prosthetic rehabilitation
- Use with narrow platform implants (CH2.1)
- Cases with limited space or non-ideal implant positioning
Contraindications
- Do not use in patients with known hypersensitivity to titanium
- Do not use in cases of insufficient implant stability
- Not intended for removable prosthetic restorations
Product Compatibility
- Direct connection to implants with internal conical connection CH2.1
- Fixation using abutment screw 701202
Used With
Unique Modular Implants (UMI)
Diameters: 3.3 mmd, 3.75 mmd
Pefect Modular Implants (PMI)
Diameters: 3.3 mmd, 3.75 mmd, 4.2 mmd
Preparation Before Use
- Supplied non-sterile
- Sterilize before use in an autoclave at 135°C (274°F)
- Inspect the abutment and screw (701202) for damage or contamination
- Ensure compatibility with the implant system
Clinical Procedure
- Ensure the implant is fully osseointegrated
- Select the appropriate abutment (15° or 25°) based on clinical requirements
- Place the abutment into the implant connection (CH2.1)
- Align the anti-rotation element correctly
- Ensure full seating of the conical connection
- Fix the abutment using screw 701202
- Tighten according to recommended clinical torque guidelines
- Verify correct positioning and stability
- Proceed with cement-retained prosthetic restoration
Post-Placement Care
- Check abutment stability before prosthetic placement
- Carefully remove excess cement to prevent peri-implant complications
- Follow standard post-operative protocols
Warnings & Precautions
- For professional dental use only
- Use only with compatible implant systems (CH2.1)
- Do not reuse if damaged or contaminated
- Avoid excessive torque during tightening
- Ensure proper seating to prevent micro-movement
- Follow standard surgical and prosthetic protocols
Storage
- Store in a clean, dry environment
- Avoid contamination prior to sterilization
