Product Description

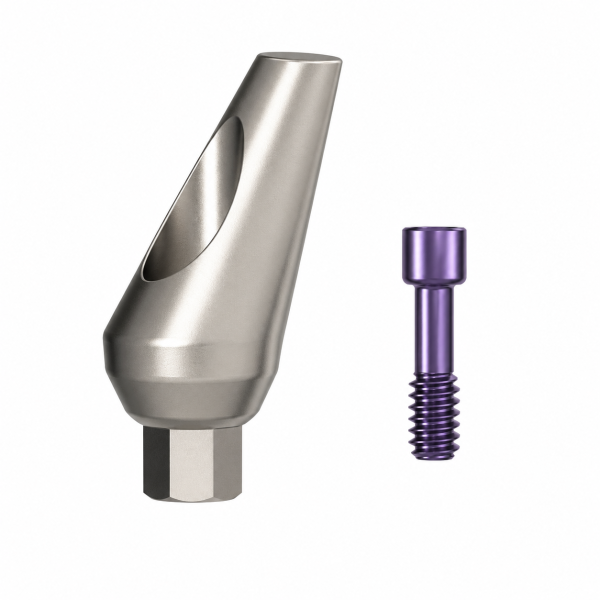

Angular Titanium Abutment 25° Short System H2.43
The Angular Titanium Abutment 25° Short System H2.43 is a precision-engineered prosthetic component designed for cement-retained restorations in cases involving short dental implants. The 25° angulation enables effective correction of implant positioning, ensuring optimal prosthetic alignment and improved aesthetic outcomes in challenging clinical situations.
The abutment features a 4.7 mm diameter and 8 mm length, with an internal hexagon connection (2.43 mm) and an integrated anti-rotation element, providing secure and stable fixation of the prosthetic structure.
Key Features
- Angulation: 25° for advanced prosthetic correction
- Diameter: 4.7 mm
- Length: 8 mm
- Connection: Internal hexagon 2.43 mm (H2.43)
- Anti-rotation design for enhanced stability
- Designed for cement-retained restorations
- Optimized for short implant systems
Material
Manufactured from medical-grade titanium alloy (Ti-6Al-4V, ASTM F136), offering:
- Excellent biocompatibility
- High mechanical strength
- Corrosion resistance
Compatibility
Direct connection to short implants (5 mm; 6 mm; 7 mm long) H2.43 using screw 701206.
Used With
Short UNIQUE Implants (5 mm; 6 mm; 7 mm long)
- Diameters: 3.75 mmd, 4.2 mmd, 5.0 mmd, 6.0 mmd
Short PRIMA Implants (5 mm; 6 mm; 7 mm long)
- Diameters: 3.75 mmd, 4.2 mmd, 5.0 mmd, 6.0 mmd
Clinical Application
- Cement-retained restorations on short implants
- Correction of implant angulation (25°)
- Aesthetic and functional prosthetic rehabilitation
- Use in limited vertical space cases
Sterilization & Handling
- Supplied non-sterile
- Must be sterilized before use in an autoclave at 135°C (274°F)
- Intended for professional dental use only
Advantages
- Optimized for short implant applications
- Angled design for improved prosthetic positioning
- Secure fixation with anti-rotation feature
- High precision and durability
- Reliable performance in complex cases
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Angular Titanium Abutment 25° Short System H2.43
Intended Use
The Angular Titanium Abutment 25° Short System H2.43 is intended for use as a prosthetic component in dental implantology to support cement-retained restorations on short implants. It enables correction of implant angulation and ensures proper positioning of the prosthetic structure.
Indications
- Cement-retained restorations
- Correction of implant angulation (25°)
- Use with short implants (5 mm; 6 mm; 7 mm)
- Aesthetic and functional prosthetic rehabilitation
- Cases with limited vertical space
Contraindications
- Do not use in patients with known hypersensitivity to titanium
- Do not use in cases of insufficient implant stability
- Not intended for removable prosthetic restorations
Product Compatibility
- Direct connection to short implant H2.43 (5 mm; 6 mm; 7 mm long)
- Fixation using abutment screw 701206
Used With
Short UNIQUE Implants (5 mm; 6 mm; 7 mm long)
Diameters: 3.75 mmd, 4.2 mmd, 5.0 mmd, 6.0 mmd
Short PRIMA Implants (5 mm; 6 mm; 7 mm long)
Diameters: 3.75 mmd, 4.2 mmd, 5.0 mmd, 6.0 mmd
Preparation Before Use
- Supplied non-sterile
- Sterilize before use in an autoclave at 135°C (274°F)
- Inspect the abutment and screw (701206) for damage or contamination
- Ensure compatibility with the implant system
Clinical Procedure
- Ensure the implant is fully osseointegrated
- Select the appropriate abutment based on clinical requirements
- Place the abutment into the implant connection (H2.43)
- Align the anti-rotation element correctly
- Ensure full seating of the abutment within the implant
- Fix the abutment using screw 701206
- Tighten according to recommended clinical torque guidelines
- Verify correct positioning and stability
- Proceed with cement-retained prosthetic restoration
Post-Placement Care
- Check stability of the abutment before prosthetic placement
- Carefully remove excess cement to prevent peri-implant complications
- Follow standard post-operative protocols
Warnings & Precautions
- For professional dental use only
- Use only with compatible implant systems (H2.43)
- Do not reuse if damaged or contaminated
- Avoid excessive torque during tightening
- Ensure proper seating to prevent micro-movement
- Follow standard surgical and prosthetic protocols
Storage
- Store in a clean, dry environment
- Avoid contamination prior to sterilization
