Product Description

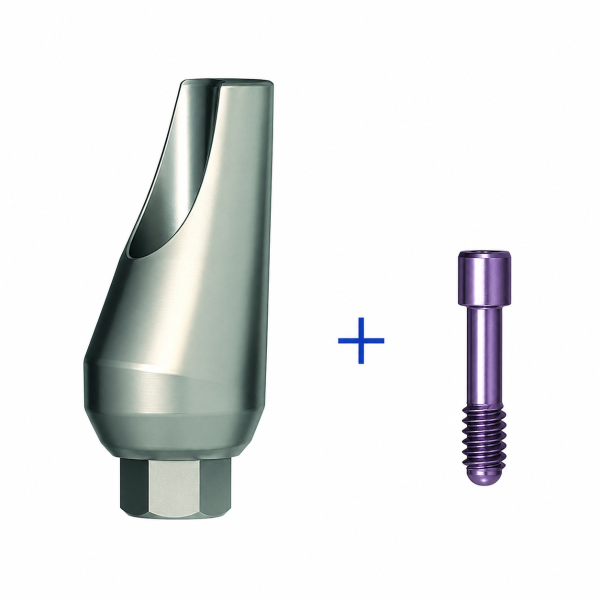

The Angular Titanium Abutment 15° for Short Implant H2.43 is a precision-engineered prosthetic component designed for cement-retained restorations in dental implantology. The 15° angulation allows for optimal correction of implant positioning, ensuring improved prosthetic alignment and эстетics in challenging clinical cases.
Manufactured from medical-grade titanium alloy (Ti-6Al-4V, ASTM F136), the abutment offers excellent biocompatibility, strength, and long-term reliability. The design features an internal hexagon connection (2.43 mm) with an anti-rotation element, providing secure and stable fixation of the prosthetic structure.
Key Features
- Angulation: 15° for prosthetic correction
- Diameter: 4.5 mm
- Connection: Internal hexagon 2.43 mm (H2.43)
- Anti-rotation design for enhanced stability
- Designed for cement-retained restorations
- Smooth, precise surface for optimal fit
Available Sizes
- Lengths: 8 mm, 11 mm
Material
Manufactured from Ti6Al4V ASTM 136 titanium alloy, providing:
- Excellent biocompatibility
- High mechanical strength
- Corrosion resistance
Compatibility
- Direct connection to short implant (5 mm; 6 mm; 7 mm long) H2.43 using screw 701206.
Used With
- Short UNIQUE implants (5 mm; 6 mm; 7 mm long)
- Diameters: 3.75 mmd, 4.2 mmd, 5.0 mmd, 6.0 mmd
- Short PRIMA implants (5 mm; 6 mm; 7 mm long)
- Diameters: 3.75 mmd, 4.2 mmd, 5.0 mmd, 6.0 mmd
Clinical Application
- Cement-retained prosthetic restorations
- Correction of implant angulation
- Use in limited vertical space with short implants
- Suitable for aesthetic and functional restorations
Sterilization & Handling
- Supplied non-sterile
- Must be sterilized before use in an autoclave at 135°C (274°F)
- Intended for professional dental use only
Advantages
- Angled design for improved prosthetic alignment
- Secure fixation with anti-rotation feature
- Compatible with short implant systems
- High precision and durability
- Supports эстетic and functional outcomes
Reviews
There are no reviews for this product, be the first to leave your review.
Answers & questions
No questions about this product, be the first and ask your question.
Angular Titanium Abutment 15° for Short Implant H2.43
Intended Use
The Angular Titanium Abutment 15° for Short Implant H2.43 is intended for use as a prosthetic component in cement-retained restorations. It provides support and alignment correction for prosthetic structures placed on short dental implants.
Indications
- Cement-retained prosthetic restorations
- Correction of implant angulation (15°)
- Use with short implants (5 mm; 6 mm; 7 mm)
- Restoration in cases with limited vertical space
Contraindications
- Do not use in patients with known hypersensitivity to titanium
- Do not use in cases where primary implant stability is not achieved
- Not intended for removable prosthetic restorations
Product Compatibility
- Direct connection to short implant H2.43 (5 mm; 6 mm; 7 mm long)
- Fixation using abutment screw 701206
Used With
- Short UNIQUE implants (5 mm; 6 mm; 7 mm long)
- Diameters: 3.75 mmd, 4.2 mmd, 5.0 mmd, 6.0 mmd
- Short PRIMA implants (5 mm; 6 mm; 7 mm long)
- Diameters: 3.75 mmd, 4.2 mmd, 5.0 mmd, 6.0 mmd
Preparation Before Use
- Supplied non-sterile
- Sterilize before use in an autoclave at 135°C (274°F)
- Inspect the abutment and screw (701206) for damage or contamination
- Ensure compatibility with implant system
Clinical Procedure
- Ensure the implant is fully osseointegrated
- Select the appropriate abutment length (8 mm or 11 mm)
- Place the abutment into the implant connection (H2.43)
- Ensure proper seating and alignment of the anti-rotation element
- Fix the abutment using screw 701206
- Tighten according to recommended clinical torque guidelines
- Verify correct positioning and stability
- Proceed with cement-retained prosthetic restoration
Post-Placement Care
- Check abutment stability before prosthetic placement
- Remove excess cement to prevent peri-implant complications
- Follow standard post-operative protocols
Warnings & Precautions
- For professional dental use only
- Use only with compatible implant systems (H2.43)
- Do not reuse if damaged or contaminated
- Ensure correct seating before tightening
- Avoid excessive torque to prevent component damage
- Follow standard surgical and prosthetic protocols
Storage
- Store in a clean, dry environment
- Avoid contamination prior to sterilization
